Model:FUL-30

Categories: , Brand:

FUL-30 / Full-Rise Scissor Lift / 3,000kg Capacity / 2,030mm height / 1-Year Warranty

The underground design lifting platform is flush with the ground, not occupying any space.

Scissor lift ANTOOL FUL-30 designed for under floorassembly. Ground level. It is the perfect lift for verylow sports cars. Extendable runways (310 mm) allowyou to lift vehicles with a long wheelbase.

Capacity: 3000/3500kg | Max Lift Height: 2030mm | Unlock Method: Pneumatic unlocking

Description

The underground design lifting platform is flush with the ground, not occupying any space.

Scissor lift ANTOOL FUL-30 designed for under floorassembly. Ground level. It is the perfect lift for verylow sports cars. Extendable runways (310 mm) allowyou to lift vehicles with a long wheelbase.

Capacity: 3000/3500kg | Max Lift Height: 2030mm | Unlock Method: Pneumatic unlocking

Features

  • 1A Quality built with CE-Certificate
  • Acoustic Warning signal (foot protection)

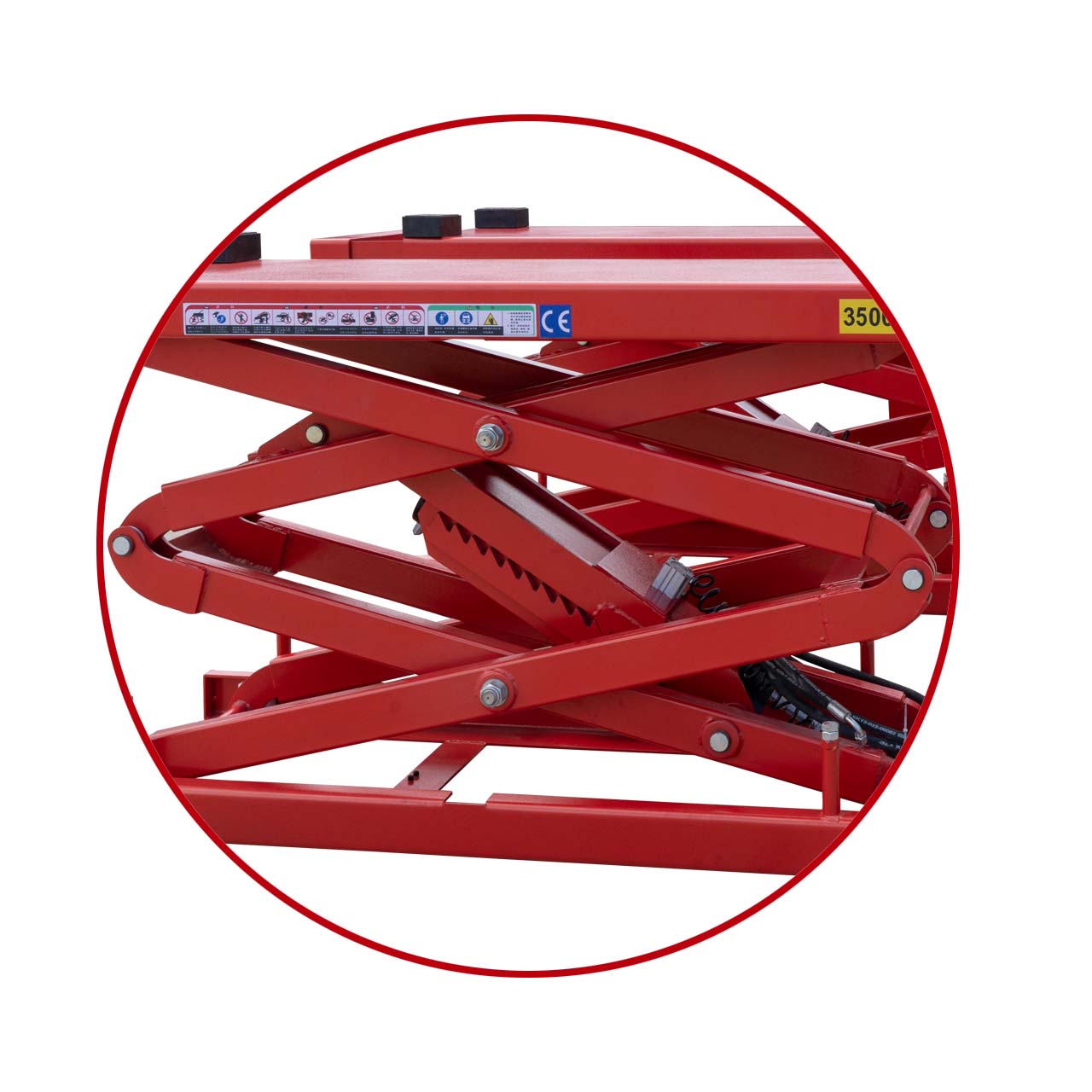

  • Hydraulic cylinders for powerful lifting and lowering
  • High quality solid construction
  • Automatic safety-lock-release system

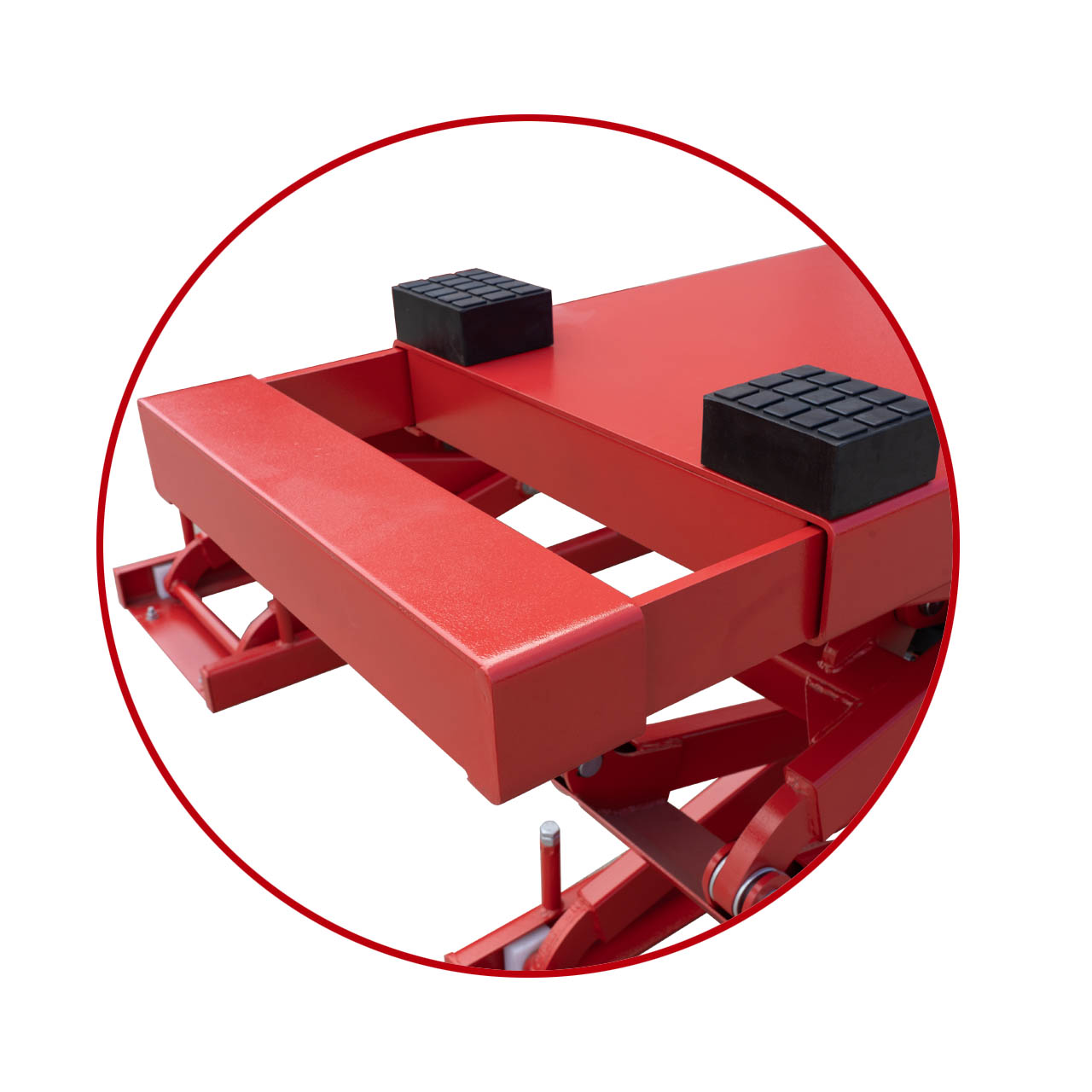

  • Platform extensions 310 mm
  • Emergency lowering valve
  • Extendable platforms

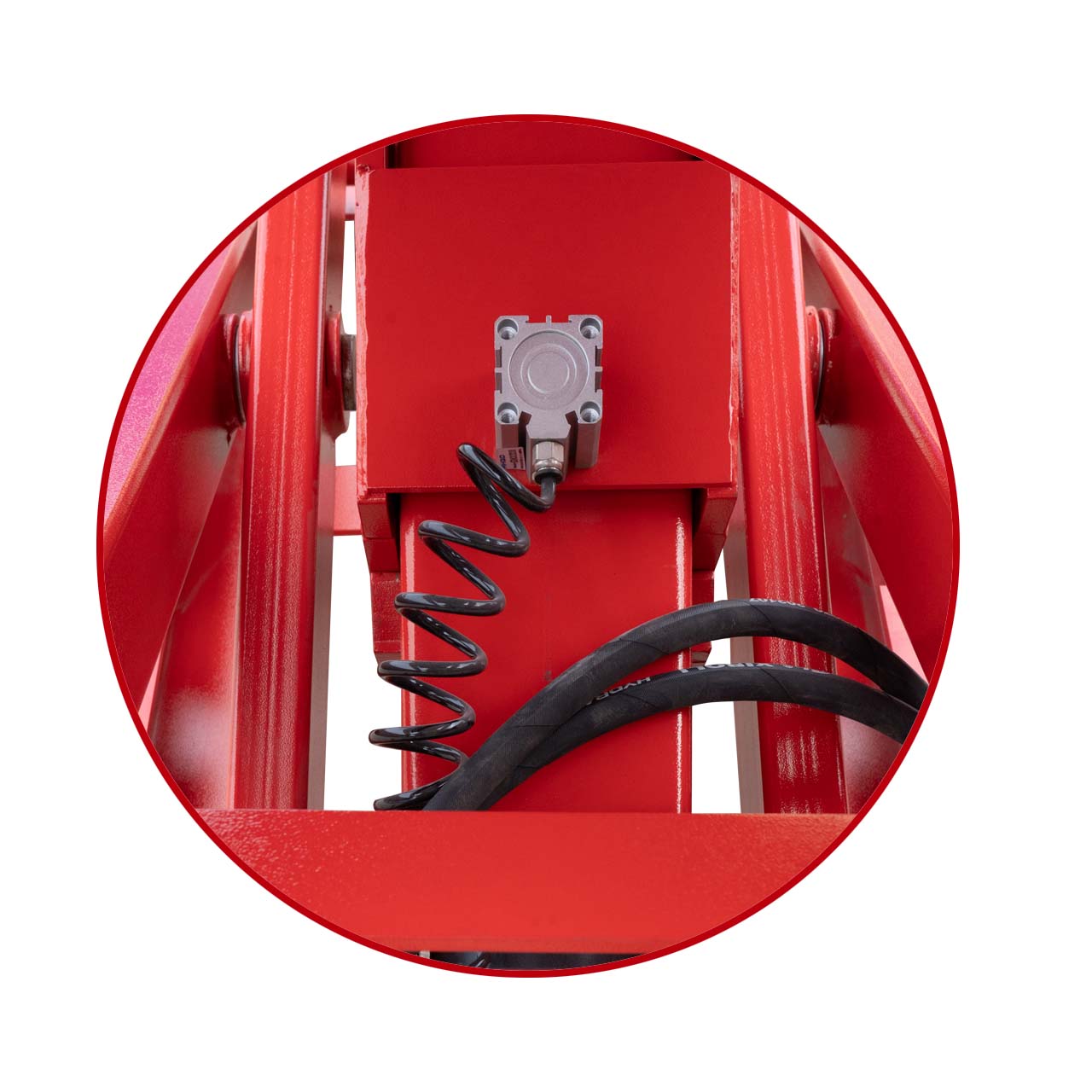

  • Compressed air of 4-8 bar required
  • Comfortable and easy-to-use control panel
  • Lowers to ground level
  • High quality powder coating
  • Certified & tested at 150% of rated capacity

Specifications

Style Scissor Lift
Lifting capacity 3000kg
Max lifting height 1850mm
Min lifting height 110mm
Platform length 1535mm
Extended length 270mm
Platform width 620mm
Lifting time 1860mm
Motor power about 45s
 Motor voltage 110/220/380v
Working noise 65dB(A)
Package size 1700*700*410mm 420*370*1050mm
package weight (approx.) 850kg

Delivery contents

  • Lift incl. Power unit
  • Rubber blocks
  • Heavy duty anchor bolts
  • English instruction manuals
  • CE-Certificate
  • Assembly video online

Shipping Information

Accessories

Warranty

We aim to provide the best warranty in the industry, without confusing language. Our goal is for you to feel confident with a simple, reliable warranty.

Please read our warranty policies before ordering, and if anything is unclear, don’t hesitate to ask for clarification. Thank you!

The AnTool LIMITED WARRANTY covers defects in materials, workmanship, and warranted parts. AnTool promises to repair or replace defective parts during the warranty period. Limited warranty does not include labor costs.

Costs incurred for installation, repairs, maintenance and non-warranted parts are the customer’s responsibility.

Wheel Equipment
3 years on major structural components from the date of manufacture
1 years on electric hydraulic power units, pneumatic power units, hydraulic cylinders, cables, hoses, locks, pulleys, sheaves, and bushings
1 year on soft or wear parts (pads, slide blocks, rubber, nylon, neoprene, and optional accessories) from the invoice date
