Model:ULD40

OLD40 / Dual Platform Scissor Alignment Lift / 4,000kg Capacity / 1,800mm height / 1-Year Warranty

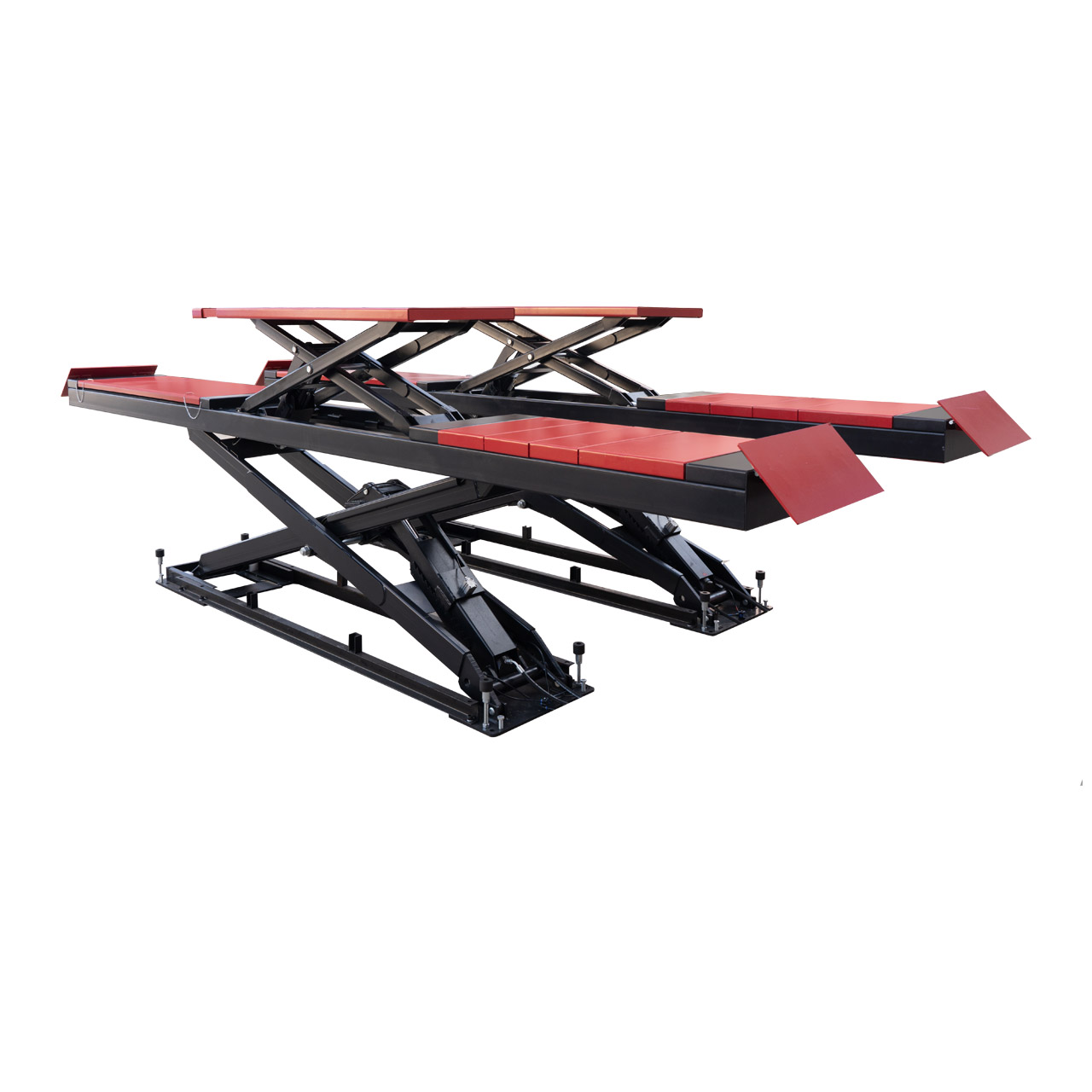

Ultra floor Dual Platform Scissor Alignment Lift

Lifting platform lift for level floor installation with integratedwheel free lift. The integrated wheel free lift allows the completevehicle (car) to be lifted with all four wheels free. Furthermore,the ULD40 has rails fitted in the ramps, which allows the use ofan additional rolling jack.

Capacity: 4000kg | Max Lift Height: 1800mm | Platform Width: 600mm

Description

Ultra floor Dual Platform Scissor Alignment Lift

Lifting platform lift for level floor installation with integratedwheel free lift. The integrated wheel free lift allows the completevehicle (car) to be lifted with all four wheels free. Furthermore,the ULD40 has rails fitted in the ramps, which allows the use ofan additional rolling jack.

Capacity: 4000kg | Max Lift Height: 1800mm | Platform Width: 600mm

Features

  • 1A Quality built with CE-Certificate
  • Hydraulic Synchronization control
  • Optional rolling jack with extensions
  • Rails for the usage of a jack
  • Automatic safety-lock-release system
  • Ramp with anti roll off saftey
  • Compressed air of 4-8 bar
  • ANTI LIFT UP-Button for precise lifting of the plat-form. This button temporarily overrides the automatic / time switching relays of the platform
  • High quality powder coating

Specifications

Style Scissor Lift
Lifting capacity 4000kg
Max lifting height 1800mm
Jack lifting height 470mm
Min Height 360mm
Width platform 600mm
Length platform 4500mm
Lifting time about 45s
Motor power 2.2kw
 Motor voltage 220v 60hz 1ph
Working noise 65dB(A)
Package size 4700*650*900mm 4700*650*440mm 540*400*1510mm
package weight (approx.) 1700kg

Delivery contents

  • Lift incl. Power unit
  • Rubber blocks
  • Sliding plates
  • 6 cover plates
  • CE-Certificate
  • English instruction manuals
  • Assembly video online | Product video online

Shipping Information

Accessories

Warranty

We aim to provide the best warranty in the industry, without confusing language. Our goal is for you to feel confident with a simple, reliable warranty.

Please read our warranty policies before ordering, and if anything is unclear, don’t hesitate to ask for clarification. Thank you!

The AnTool LIMITED WARRANTY covers defects in materials, workmanship, and warranted parts. AnTool promises to repair or replace defective parts during the warranty period. Limited warranty does not include labor costs.

Costs incurred for installation, repairs, maintenance and non-warranted parts are the customer’s responsibility.

Wheel Equipment
3 years on major structural components from the date of manufacture
1 years on electric hydraulic power units, pneumatic power units, hydraulic cylinders, cables, hoses, locks, pulleys, sheaves, and bushings
1 year on soft or wear parts (pads, slide blocks, rubber, nylon, neoprene, and optional accessories) from the invoice date
What Is Not Covered or Voids Limited Warranty
