Antool AT-860

Automatic Tilt back with pressure wheels and tire support combination Tyre changer

Reliability, durability, and performance — at a price that makes sense.
The Antool AT-860 Tyre changer with pneumatic tilting mounting arm and a built-in air booster. For standard, low profile, UHP and run-flat tires.  Including upgraded pressure wheels and tire support combination auxiliary arms.

Warranty: 3 Years | Max Tire Diameter: 41″ | Max Wheel Width: 15″

Features

  • 1A Quality built with CE-Certificate
  • Adjustable tilting arm | Robust construction

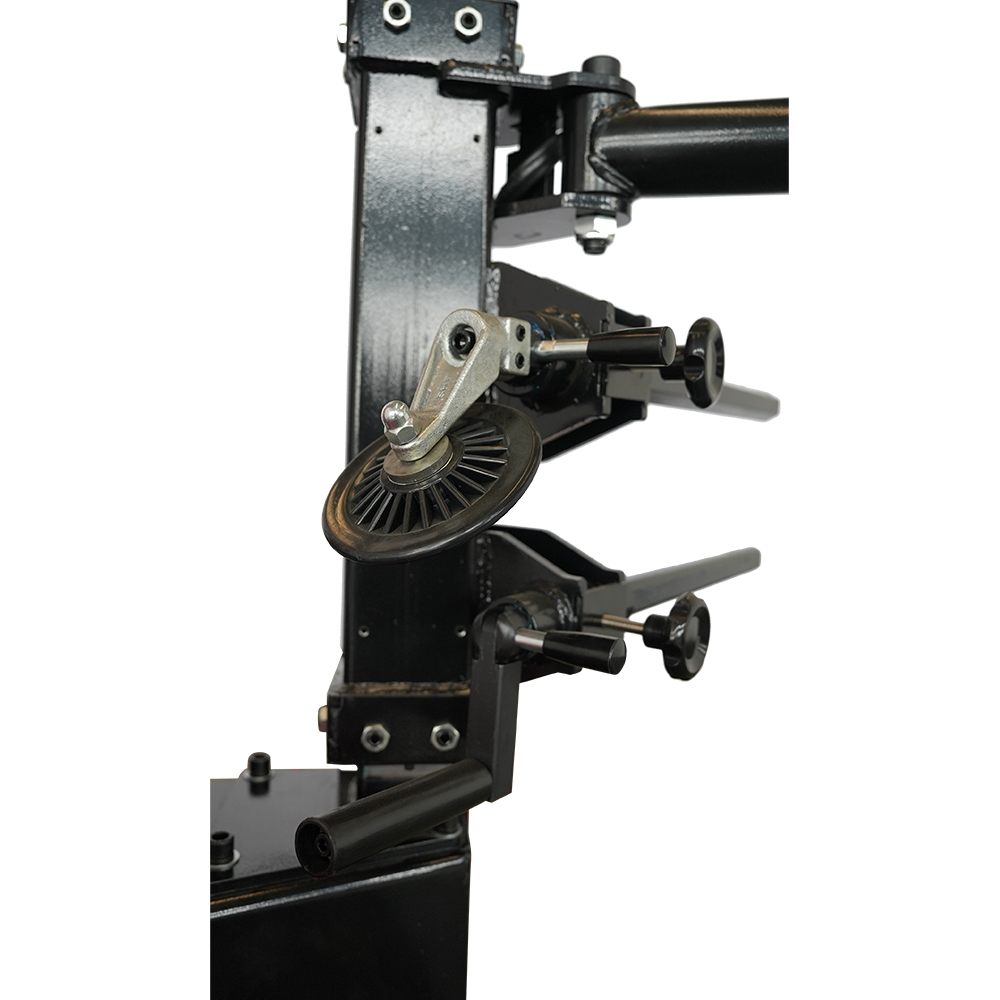

  • Upgraded pressure wheels and tire support combination auxiliary arms.

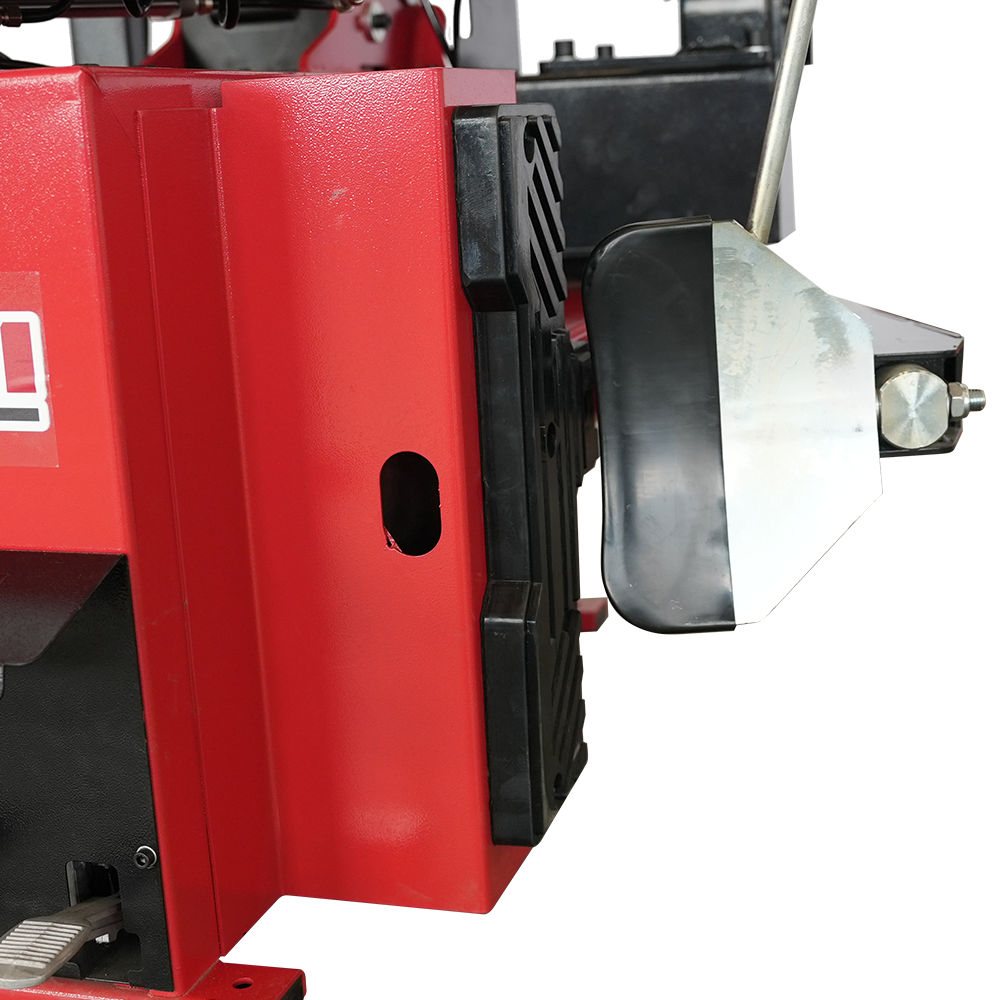

  • Powerful bead breaker (3000 kg)

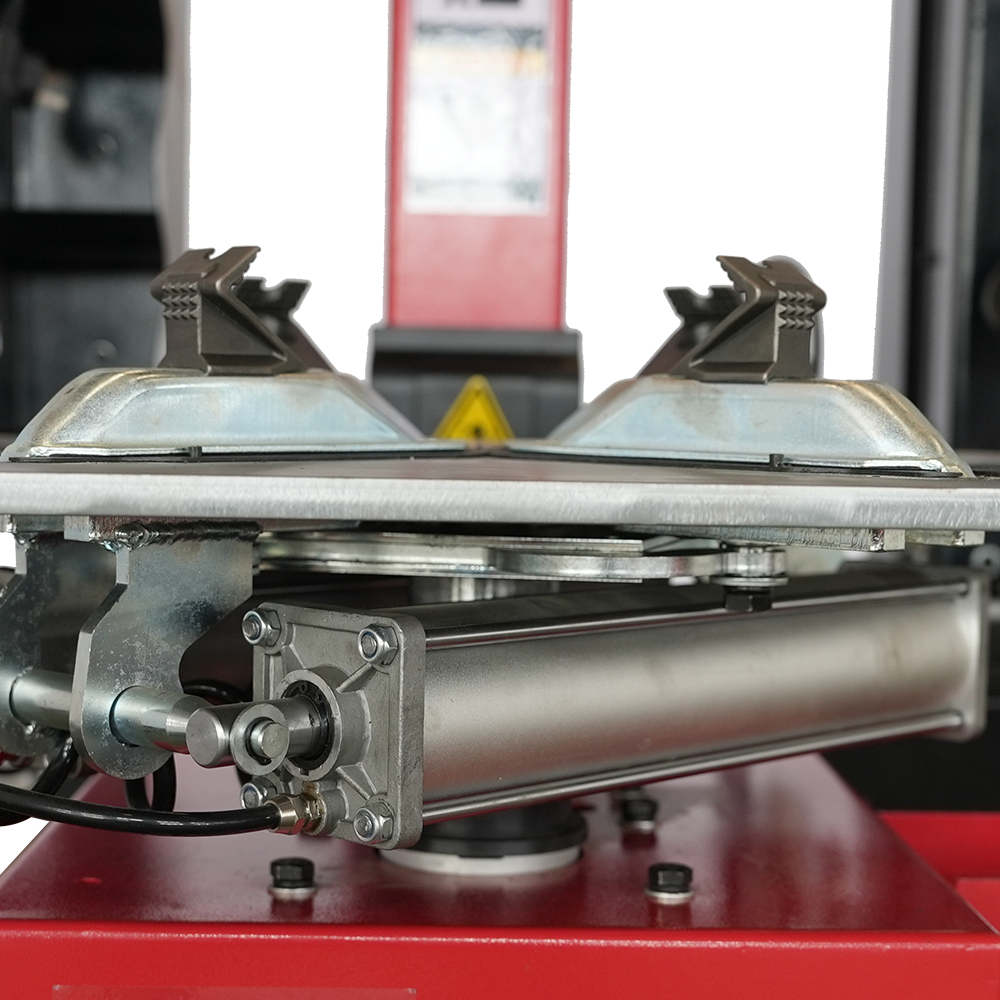

  • Self centering 4-jaw clamping system
  • Large clamping range for cars and vans

(Outside 10”- 22” Inside 14” – 26”)

  • Integrated air booster in the clamping jaws
  • Exchangeable plastic protectors for the mounting head
  • High quality stainless steel components fitted inside

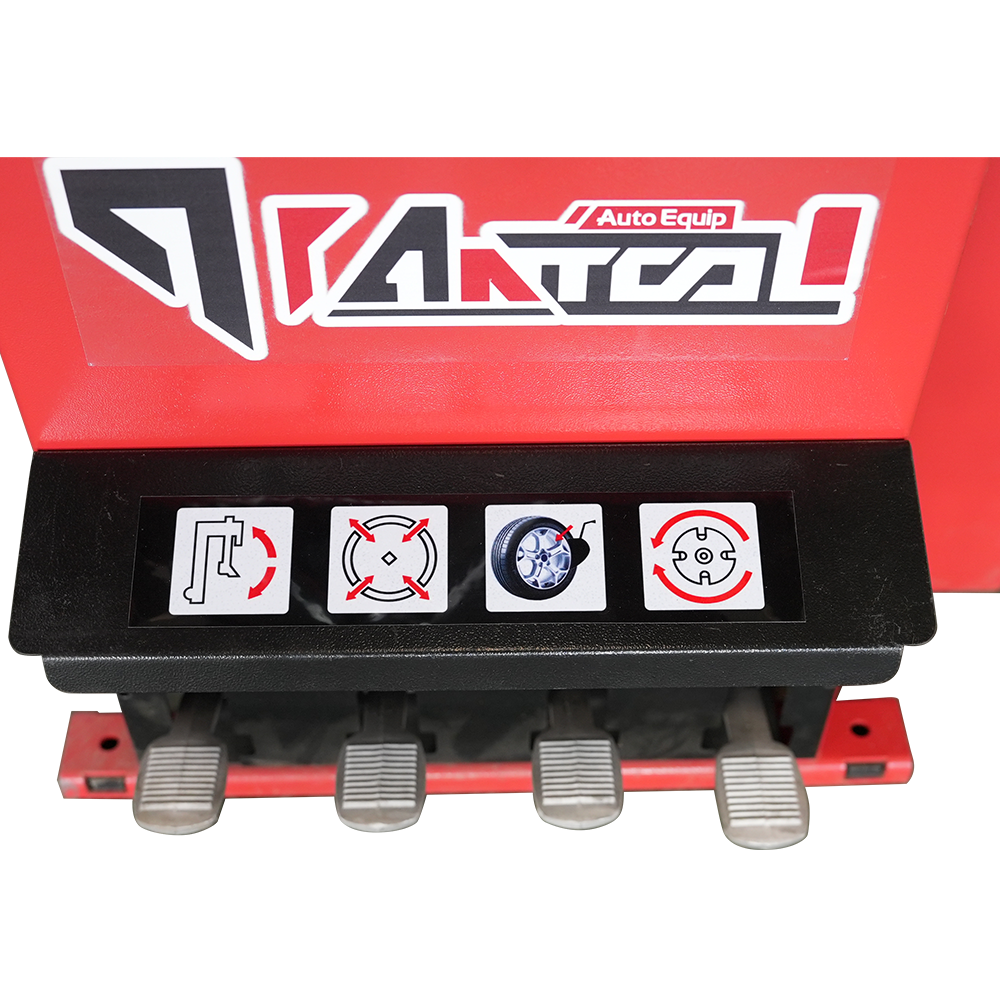

  • Precise control block with STOP function
  • Powerful electrical motor
  • Clamping jaws made of special steel



Specifications

Outside clamping range 10“ – 22“
Inside clamping range 14“ – 26“
Wheel diameter (max.) 41“ (1040 mm)
Wheel width (max.) ) 15“ (380 mm
Bead breaker force 3000 kg

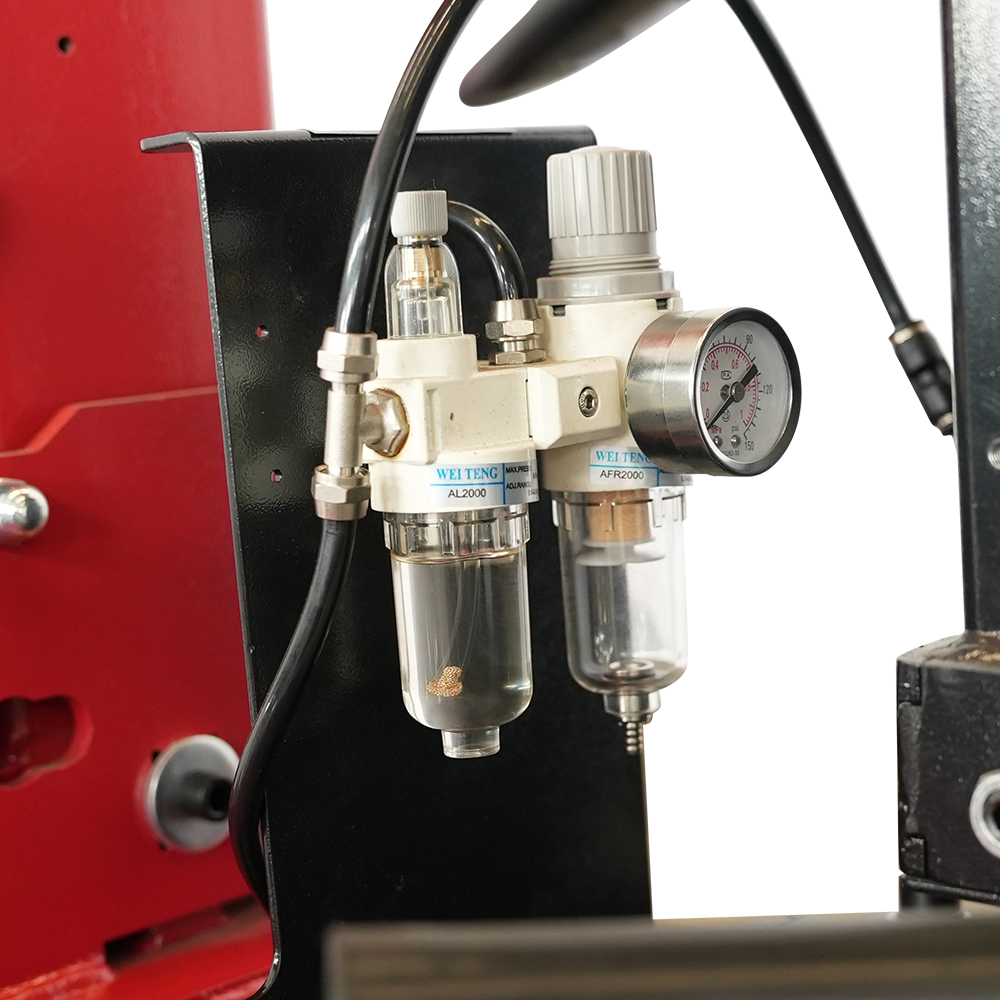

Air supply 8-10 bar
Working disc speed  7rpm
Power supply 110V/220V/380V
Motor power  1,1 kW/0.75kW
Noise level <75 dB
Package size 1140*1000*1920mm
package weight (approx.) 350 kg

Shipping Information

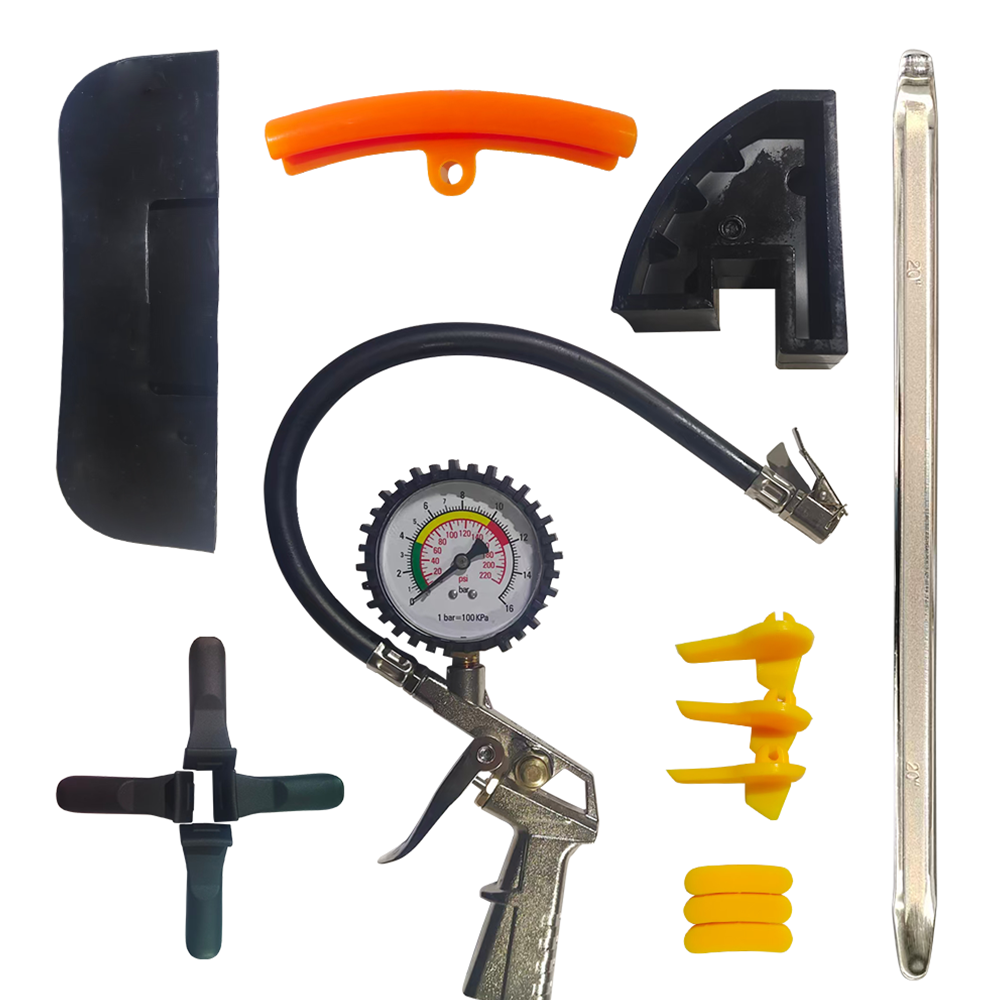

Accessories

Warranty

We aim to provide the best warranty in the industry, without confusing language. Our goal is for you to feel confident with a simple, reliable warranty.

Please read our warranty policies before ordering, and if anything is unclear, don’t hesitate to ask for clarification. Thank you!

The AnTool LIMITED WARRANTY covers defects in materials, workmanship, and warranted parts. AnTool promises to repair or replace defective parts during the warranty period. Limited warranty does not include labor costs.

Costs incurred for installation, repairs, maintenance and non-warranted parts are the customer’s responsibility.

Wheel Equipment
3 years on major structural components from the date of manufacture
1 years on electric hydraulic power units, pneumatic power units, hydraulic cylinders, cables, hoses, locks, pulleys, sheaves, and bushings
1 year on soft or wear parts (pads, slide blocks, rubber, nylon, neoprene, and optional accessories) from the invoice date
What Is Not Covered or Voids Limited Warranty
