Antool H3D-X9

Antool H3D-X9 /3D Car Wheel Aligner, Automatic Lifting Pole Wheel Alignment Machine With Cabinet

Dynamic 3D precision, Advanced Software, and Antool reliability.

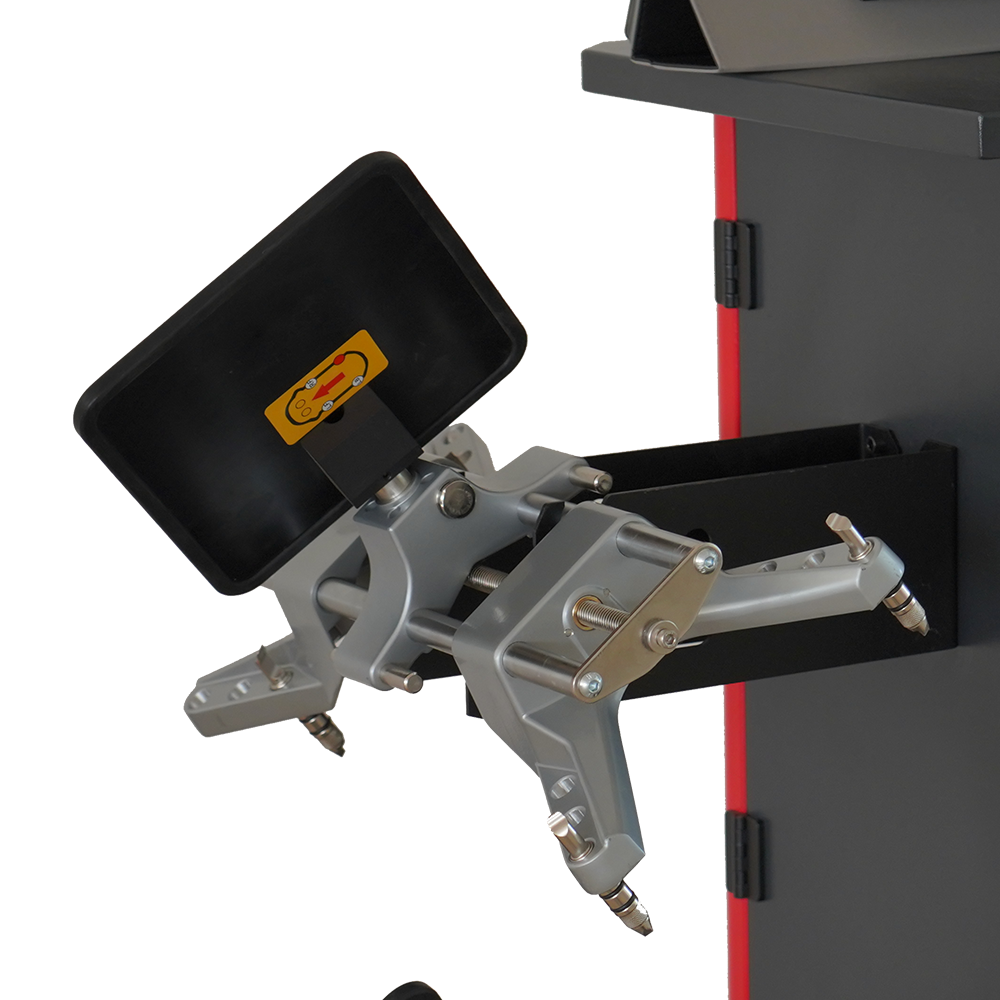

The H3D-X9 delivers fast, damage-free, and highly accurate alignments with its patented 3-point tire clamps and true 3D measuring system. Covering 95% of vehicles on the road.
Warranty: 1-Year |

Features

  • 1A Quality built with CE-Certificate
  • Suitable for any lifting platform (double column/small scissor/four column/large scissor lift), solving the limitations of traditional 3D lifting platforms and venues;
  • Supports multiple operating platforms, WIFI point-to-point transmission can automatically block external interference.(Android and iOS)
  • Powerful cloud service backend engine that can connect to iPads, mobile phones, computers, networks, and support remote shunting and data upgrades.

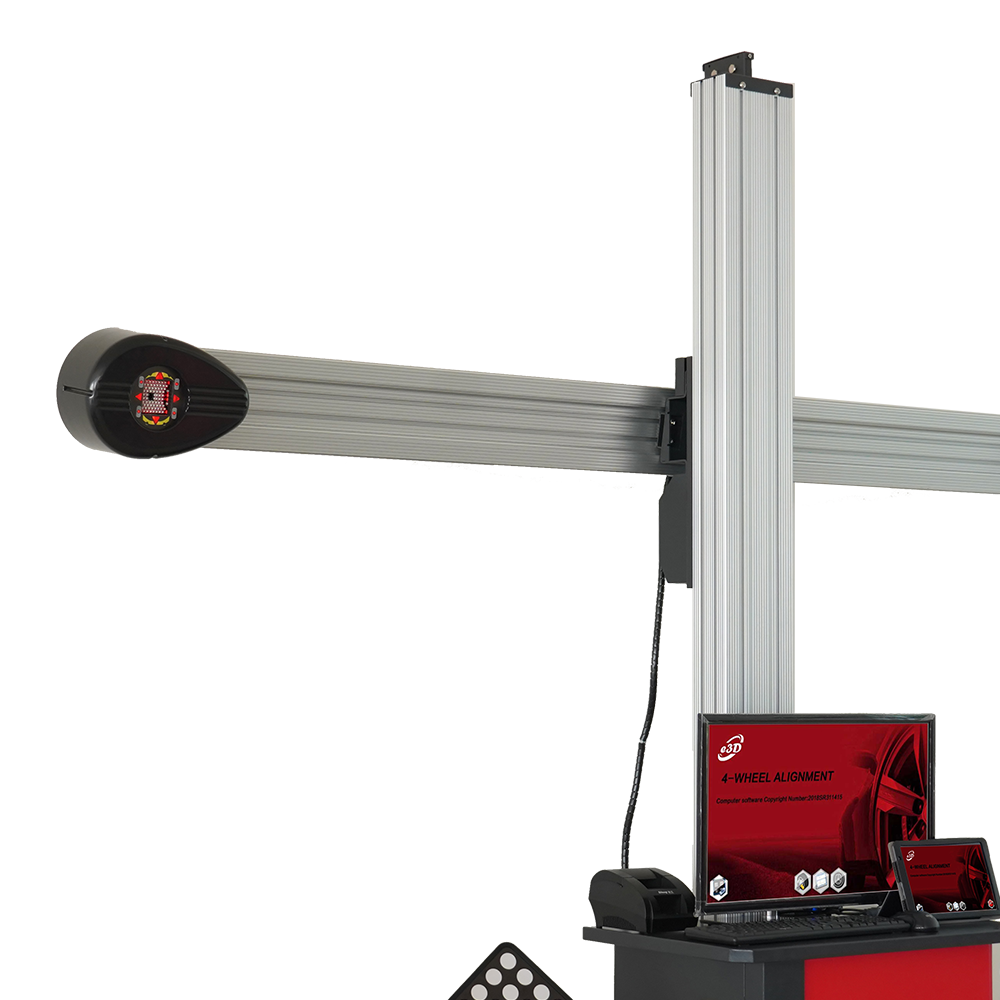

  • Electric lifting device for camera carrier with Follow-Me function.
  • 3D imaging based on body measurements,a broader view, more accurate data
  • 2 minutes can complete positioning measurement, and reads the location data
  • LED display for camber and toe
  • Measurement range up to +/- 20 °
  • 3D digital imaging positioning technology,Accuracy of measurement up to +/-0,01°

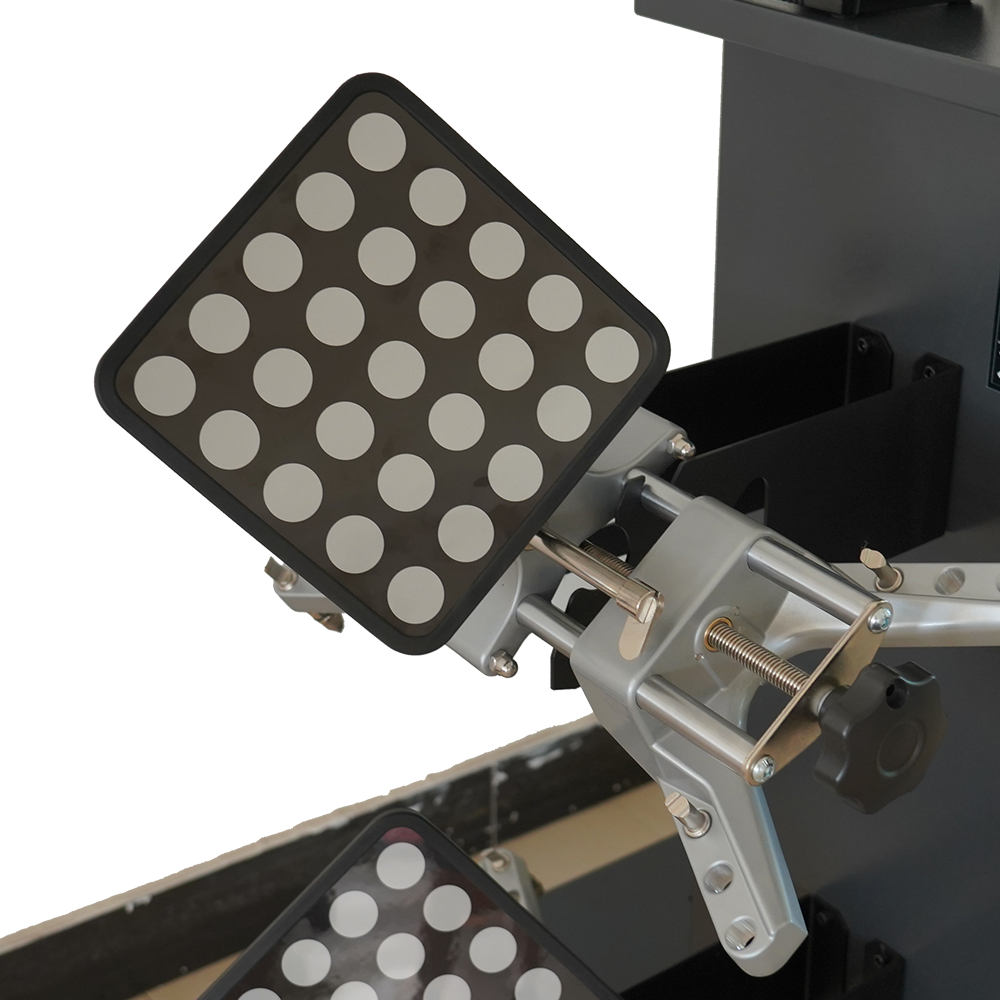

  • Measuring head with wheel clamps
  • Wheel diameters: 22 cm – 60 cm (9″ to 24″)
  • Configure a mobile tool cabinet. Improve work efficiency

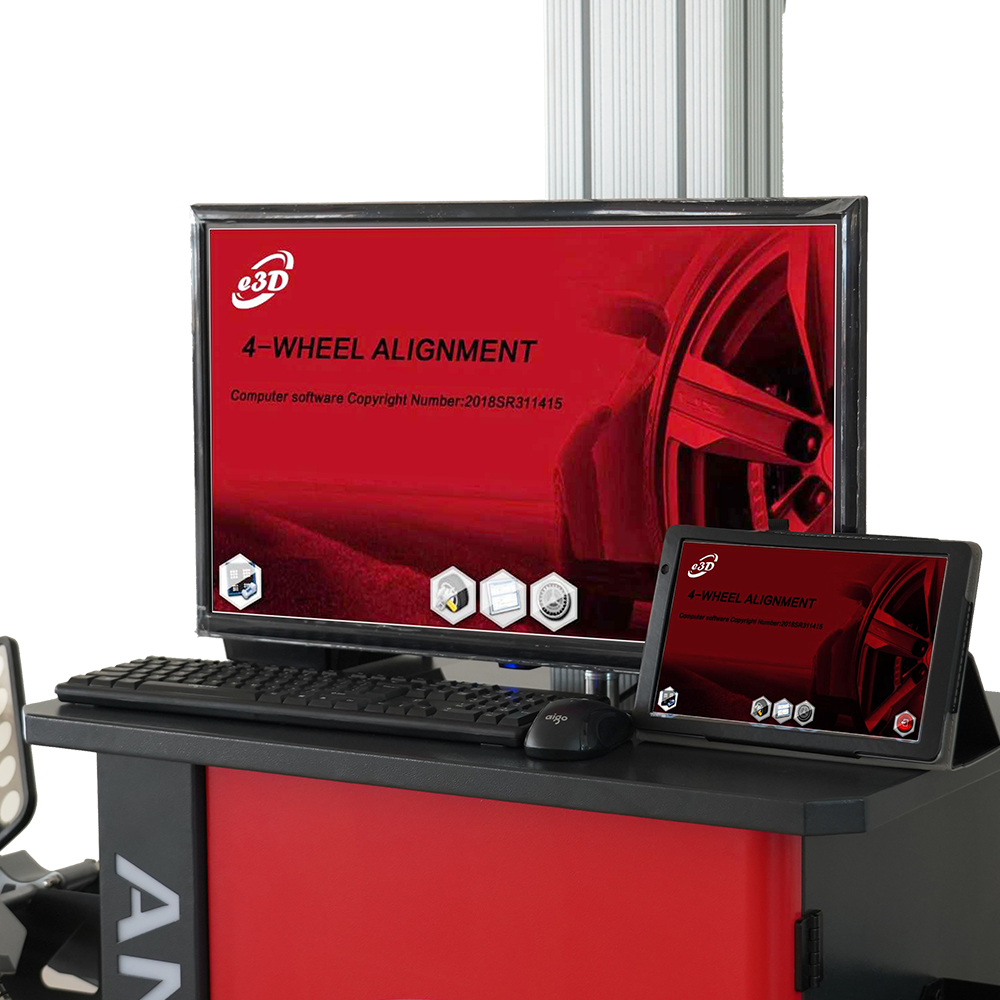

  • User friendly software with lifetime free updates of car data

Specifications

Measuring Project Measuring accuracy Measuring range
camber ±0.01° ±10°
caster ±0.02° ±20°
S.A.I ±0.02° ±20°
Toe-in ±0.01° ±20°
SetBack ±0.02° ±5°
Track width ±2mm <2650mm
Wheelbase ±2mm <5330mm

Shipping Information

Accessories

Warranty

We aim to provide the best warranty in the industry, without confusing language. Our goal is for you to feel confident with a simple, reliable warranty.

Please read our warranty policies before ordering, and if anything is unclear, don’t hesitate to ask for clarification. Thank you!

The AnTool LIMITED WARRANTY covers defects in materials, workmanship, and warranted parts. AnTool promises to repair or replace defective parts during the warranty period. Limited warranty does not include labor costs.

Costs incurred for installation, repairs, maintenance and non-warranted parts are the customer’s responsibility.

Wheel Equipment
3 years on major structural components from the date of manufacture
1 years on electric hydraulic power units, pneumatic power units, hydraulic cylinders, cables, hoses, locks, pulleys, sheaves, and bushings
1 year on soft or wear parts (pads, slide blocks, rubber, nylon, neoprene, and optional accessories) from the invoice date
What Is Not Covered or Voids Limited Warranty
