Antool AT-810

Semi-automatic Swing arm design Tyre changer

Reliability, durability, and performance — at a price that makes sense.
The Antool AT-810 Tyre changing machine with swing arm design,the ideal starter model with TOP price-performance

ratio, user friendly and an innovative design.

Warranty: 3 Years | Max Tire Diameter: 41″ | Max Wheel Width: 15″

Features



  • 1A Quality built with CE-Certificate
  • Side swing mounting arm design

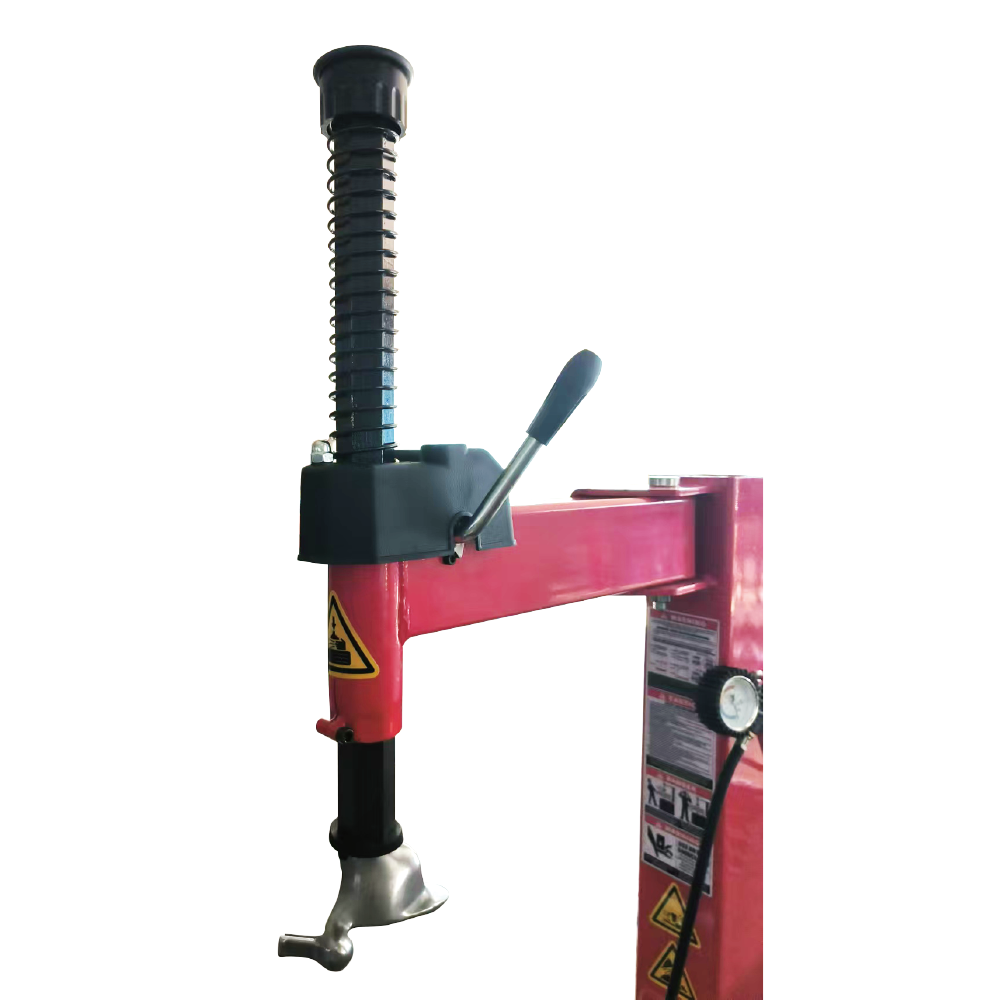

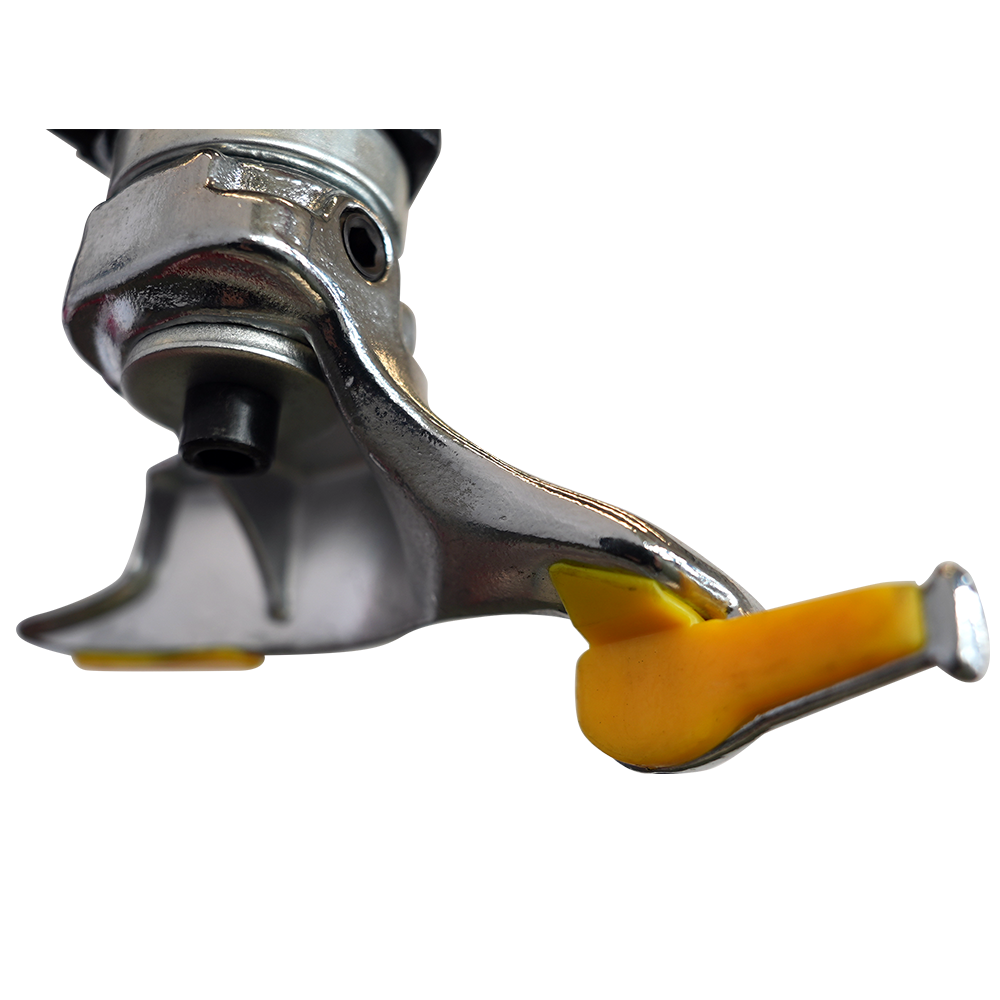

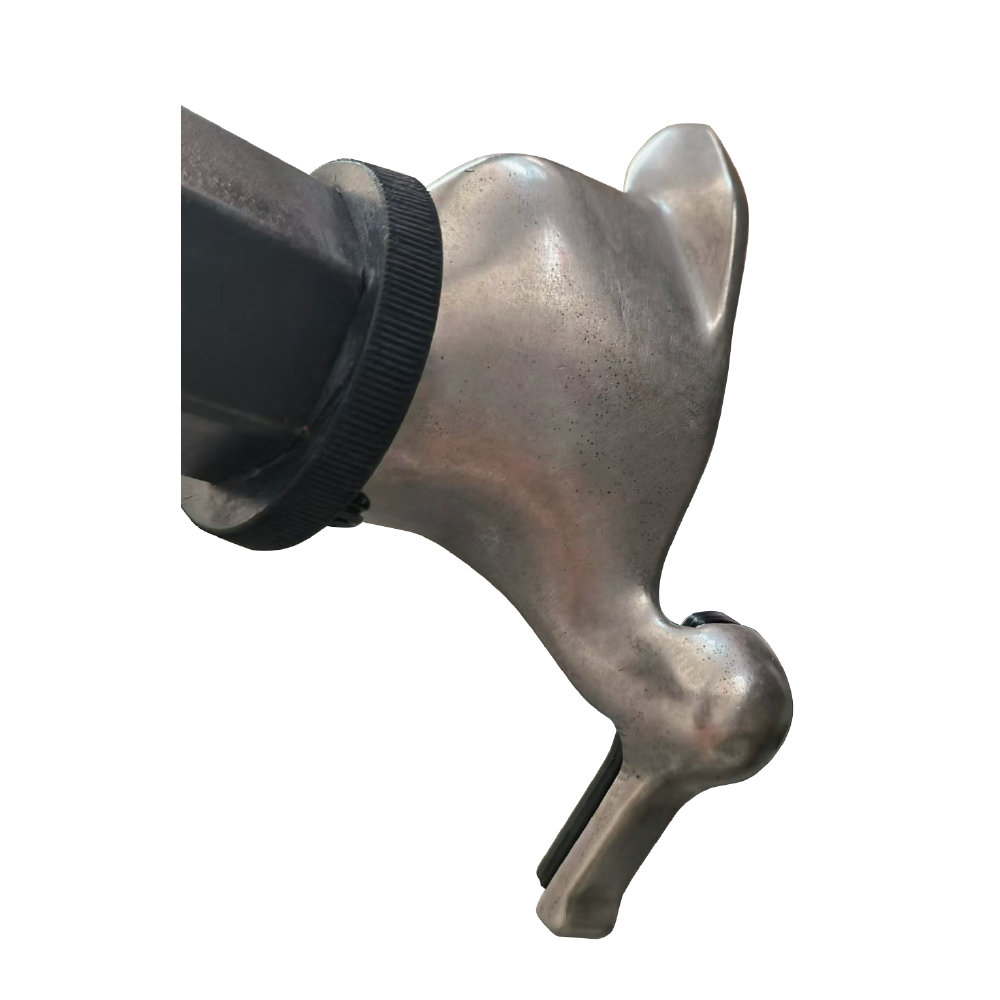

  • Eccentric tension of mount and demount head

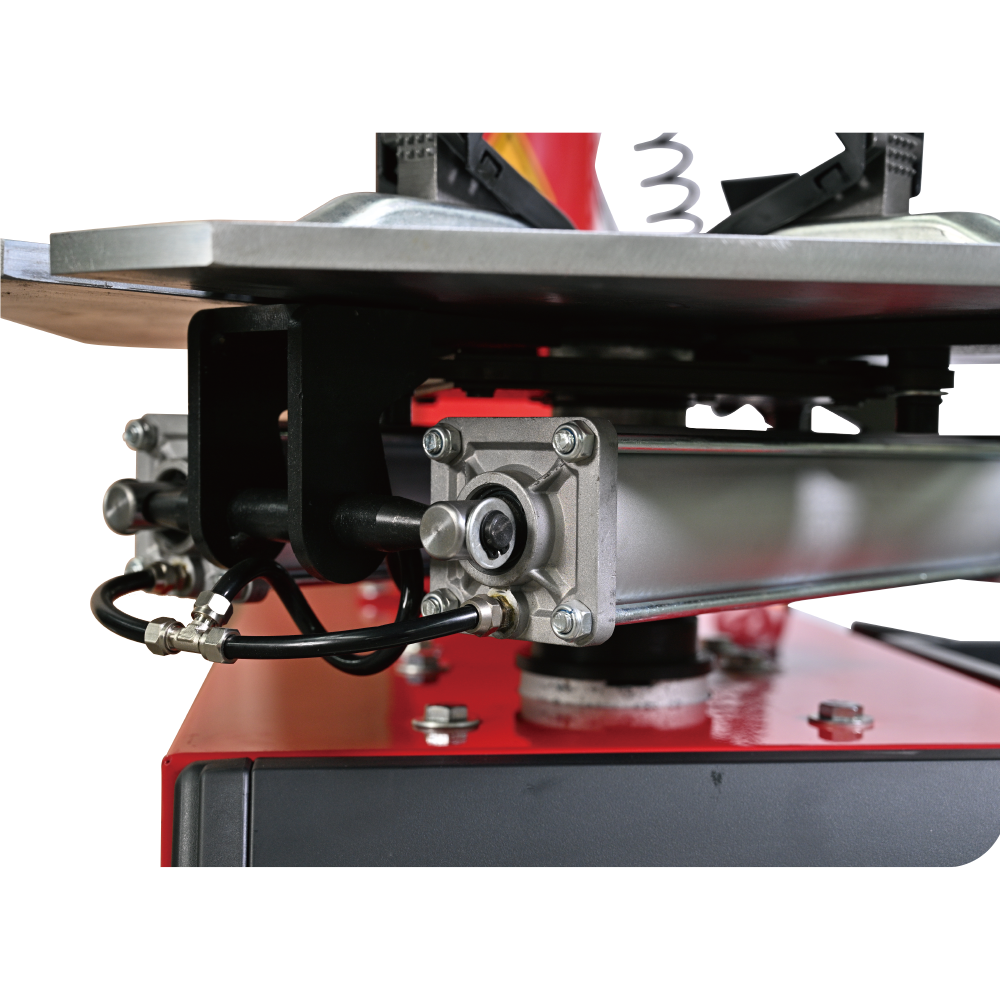

  • Powerful bead breaker

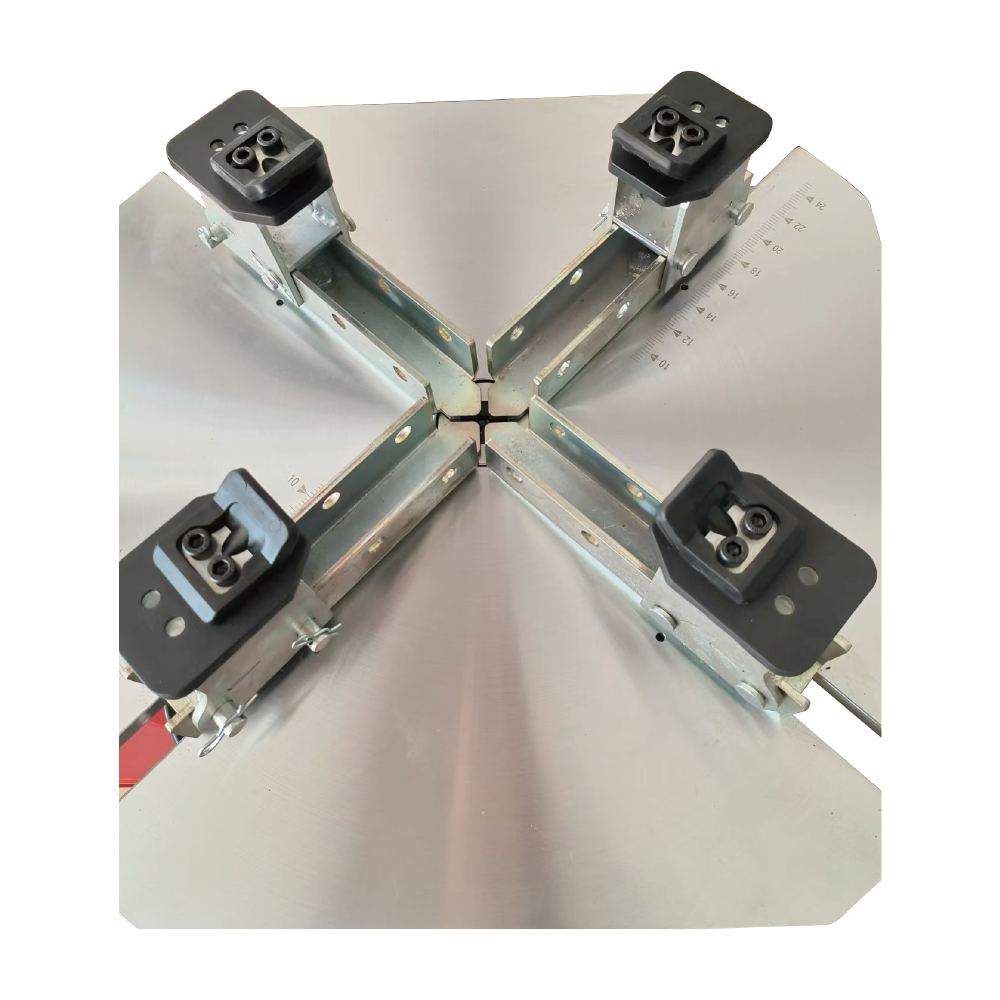

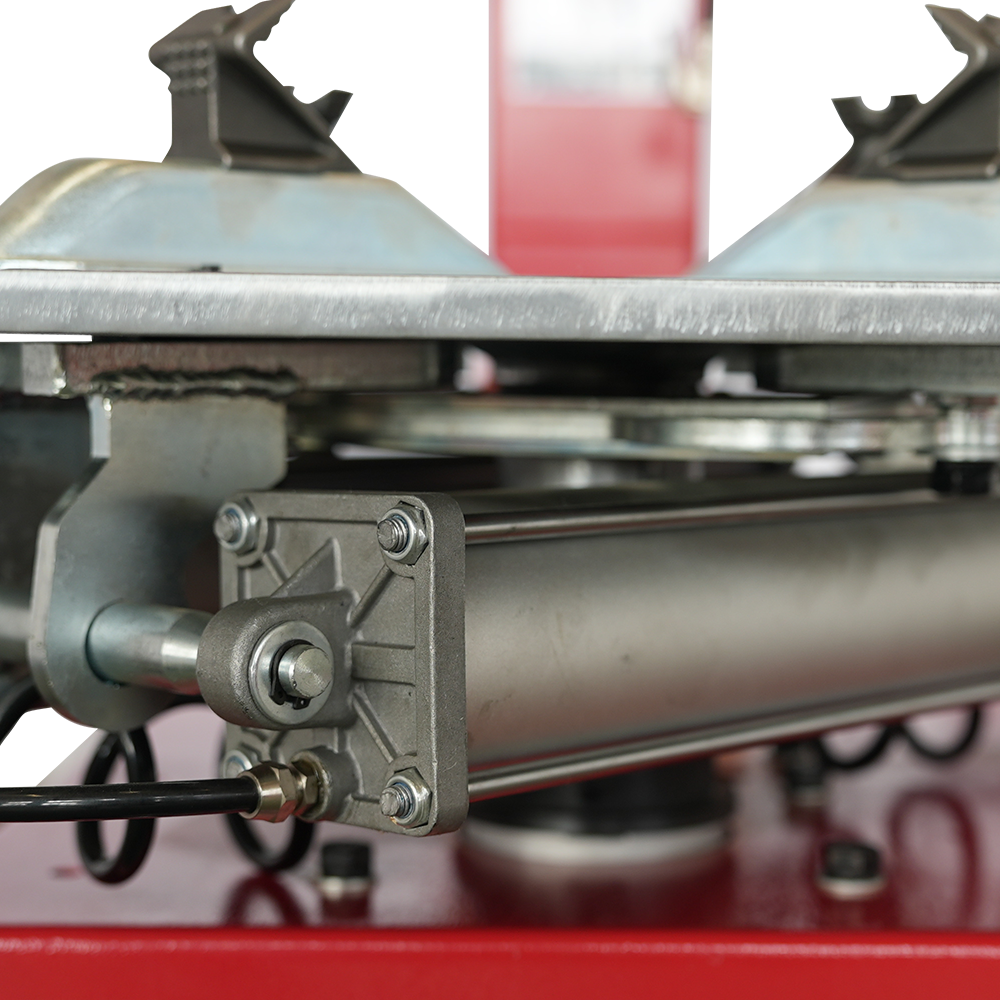

  • Self centered 4 clamping jaws system
  • 22“ large turntable for cars and vans
  • Powerful electric motor powered turntable
  • Clamping jaws made of special steel

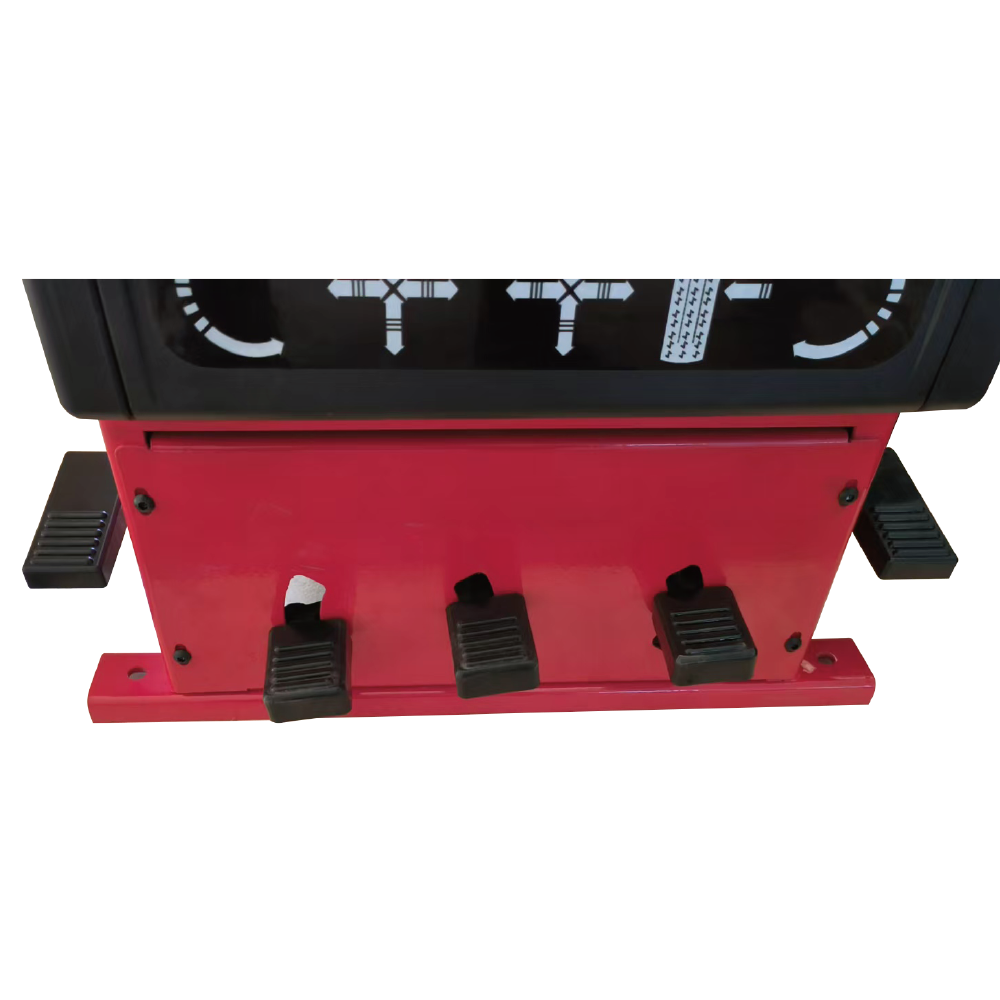

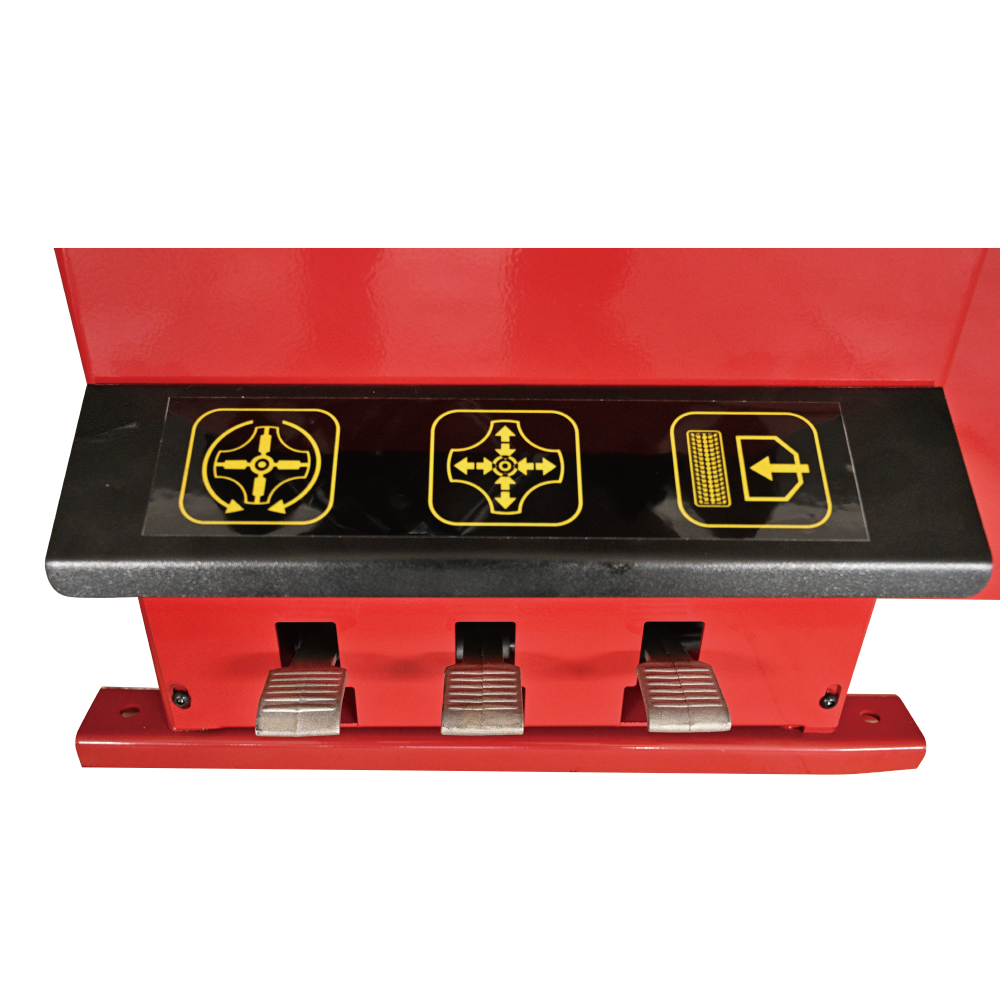

  • Comfortable iron injection reinforced plastic foot pedal

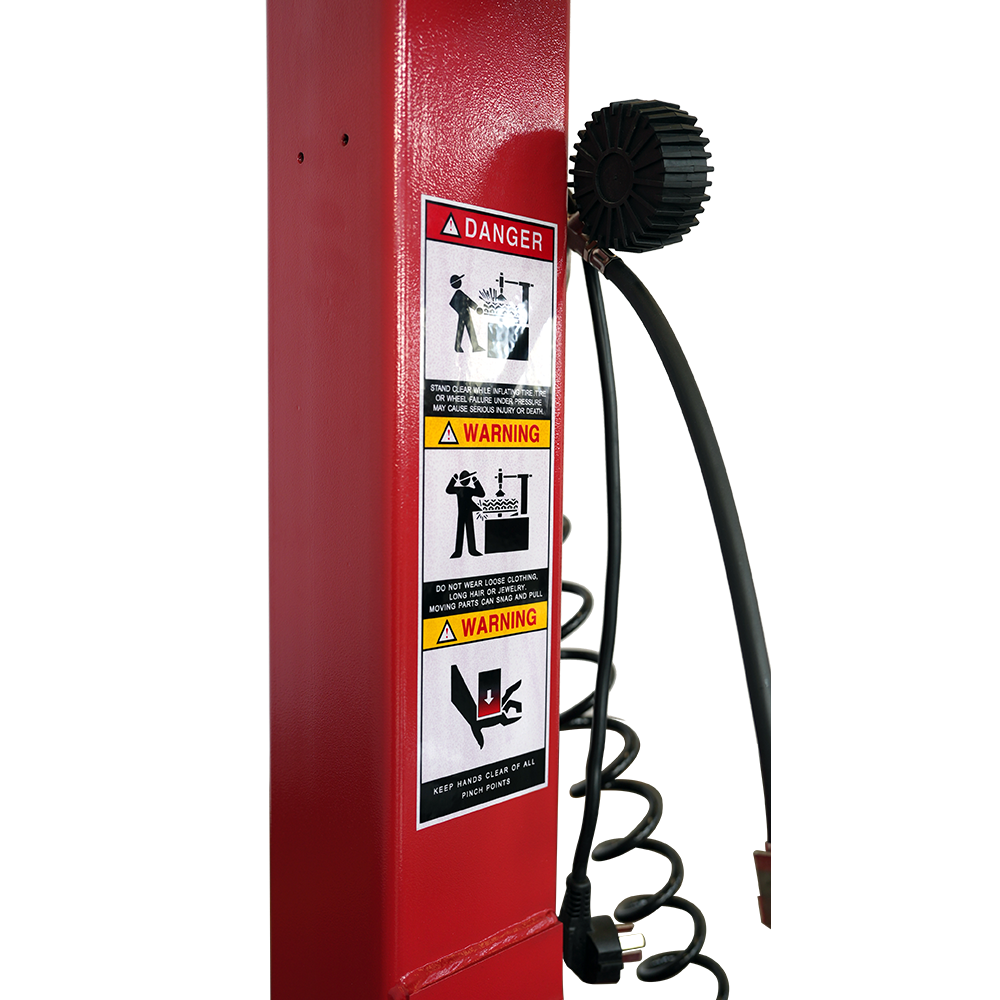

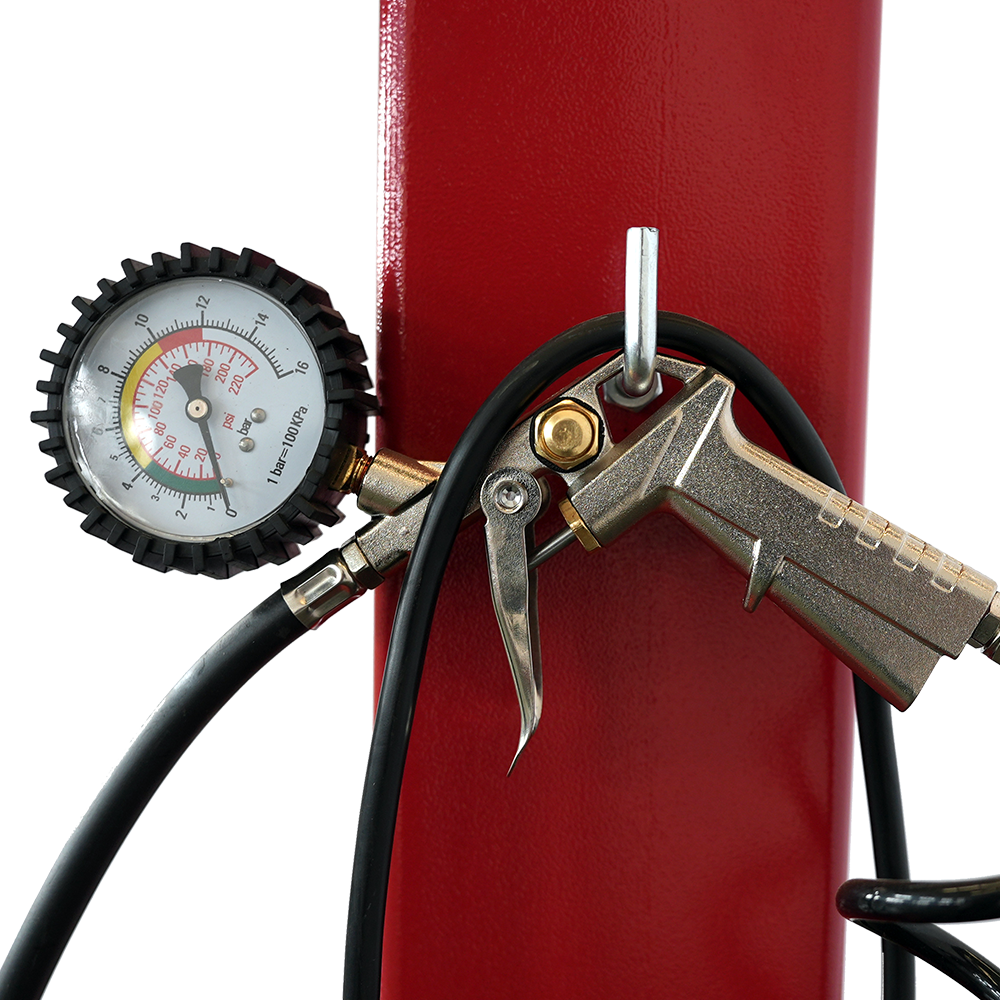

  • Comfortable and clear tyre inflator

Specifications

Outside clamping range 10“ – 19“
Inside clamping range 12“ – 22“
Wheel diameter (max.) 41“ (1040 mm)
Wheel width (max.) 15“ (380 mm)
Bead breaker force 2500 kg

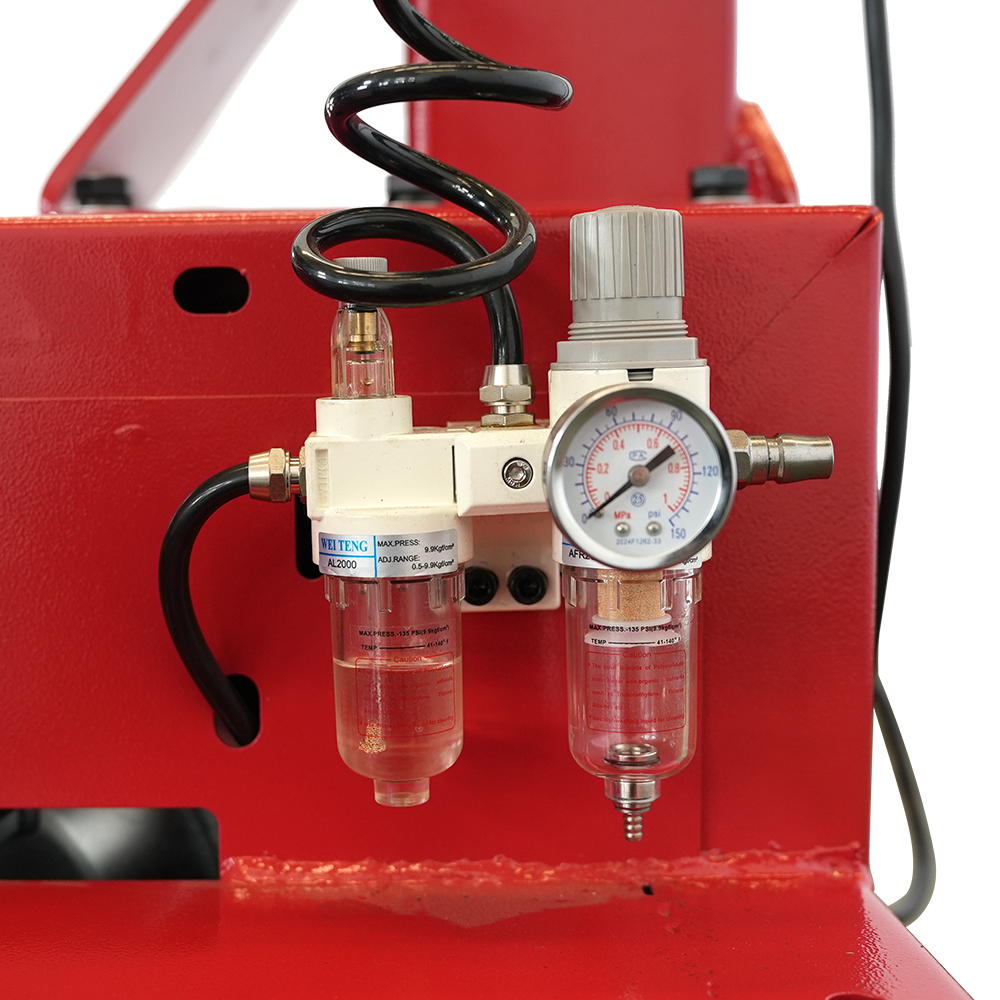

Air supply 8-10 bar
Working disc speed 7rpm
Power supply 110V/220V/380V
Motor power 1,1 kW/0.75kW
Noise level <75 dB
Package size  970*760*870mm
package weight (approx.) 200 kg

Shipping Information

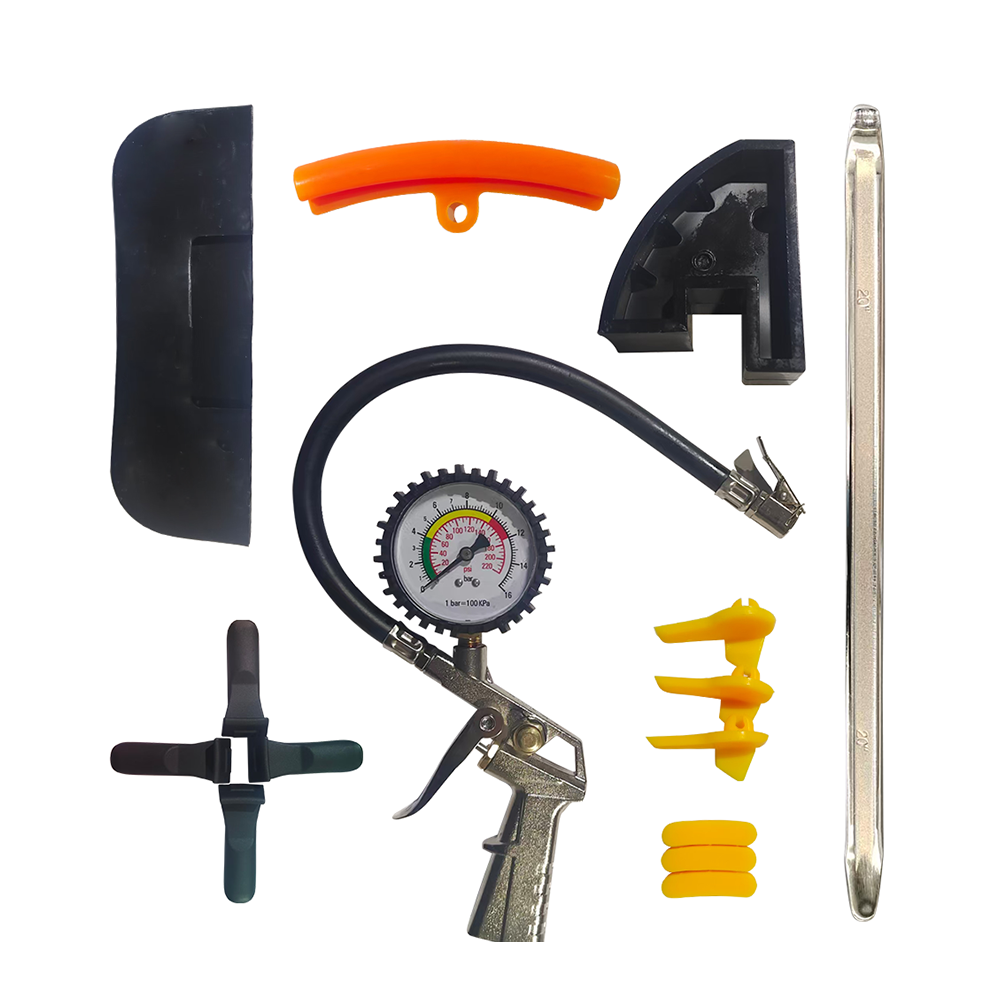

Accessories

Warranty

We aim to provide the best warranty in the industry, without confusing language. Our goal is for you to feel confident with a simple, reliable warranty.

Please read our warranty policies before ordering, and if anything is unclear, don’t hesitate to ask for clarification. Thank you!

The AnTool LIMITED WARRANTY covers defects in materials, workmanship, and warranted parts. AnTool promises to repair or replace defective parts during the warranty period. Limited warranty does not include labor costs.

Costs incurred for installation, repairs, maintenance and non-warranted parts are the customer’s responsibility.

Wheel Equipment
3 years on major structural components from the date of manufacture
1 years on electric hydraulic power units, pneumatic power units, hydraulic cylinders, cables, hoses, locks, pulleys, sheaves, and bushings
1 year on soft or wear parts (pads, slide blocks, rubber, nylon, neoprene, and optional accessories) from the invoice date
