Model:SD0401C

Category Brand:

AnTool 20-50 Ton Hydraulic H Frame Press Pressure Gauge Working Table Industrial Machine for Garage Auto Repair Workshop

Features

  • This H-frame workshop press can be used for electric motor and armature repair, installation and removal of pressure-fitted parts, and bending or straightening metal.
  • Made from high quality steel with a powder coated paint finish to help corrosion resistance.
  • Extra-long handle included for easy pumping force.
  • Easy-to-use, hand-operated; tables raise and lower easily.

Specifications

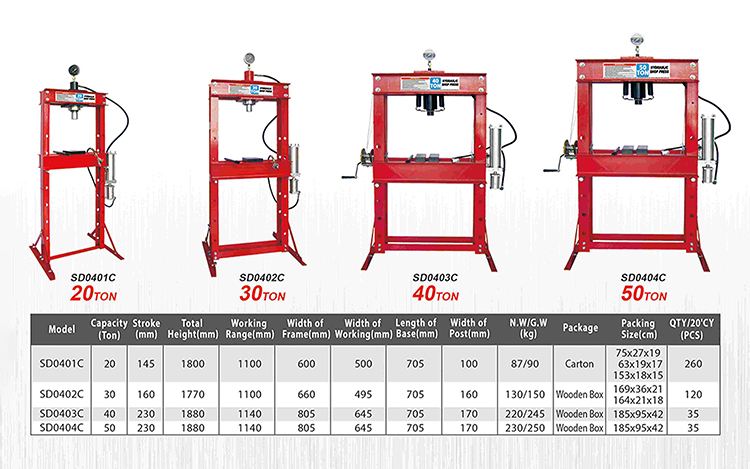

Parameter SD0401C SD0402C SD0403C SD0404C
Model SD0401C SD0402C SD0403C SD0404C
Capacity (Ton) 20 30 40 50
Stroke (mm) 145 160 230 230
Total Height (mm) 1800 1770 1880 1880
Working Range (mm) 1100 1100 1140 1140
Width of Frame (mm) 600 660 805 805
Working Width (mm) 500 495 645 645
Length of Base (mm) 705 705 705 705
Width of Post (mm) 100 160 170 170
N.W / G.W (kg) 87 / 90 130 / 150 220 / 245 230 / 250
Package Carton Wooden Box Wooden Box Wooden Box
Packing Size (cm) 75×27×19 / 63×19×17 169×36×21 / 164×21×18 185×95×42 185×95×42
QTY / 20’CY (PCS) 260 120 35 35

Delivery contents

Shipping Information

Accessories

Warranty

We aim to provide the best warranty in the industry, without confusing language. Our goal is for you to feel confident with a simple, reliable warranty.

Please read our warranty policies before ordering, and if anything is unclear, don’t hesitate to ask for clarification. Thank you!

The AnTool LIMITED WARRANTY covers defects in materials, workmanship, and warranted parts. AnTool promises to repair or replace defective parts during the warranty period. Limited warranty does not include labor costs.

Costs incurred for installation, repairs, maintenance and non-warranted parts are the customer’s responsibility.

Wheel Equipment
3 years on major structural components from the date of manufacture
1 years on electric hydraulic power units, pneumatic power units, hydraulic cylinders, cables, hoses, locks, pulleys, sheaves, and bushings
1 year on soft or wear parts (pads, slide blocks, rubber, nylon, neoprene, and optional accessories) from the invoice date
What Is Not Covered or Voids Limited Warranty
