Model:4PL40

Categories: , Brand:

4PL40 / 4 Post Lift / 4,000kg Capacity / 1,700mm height / 1-Year Warranty

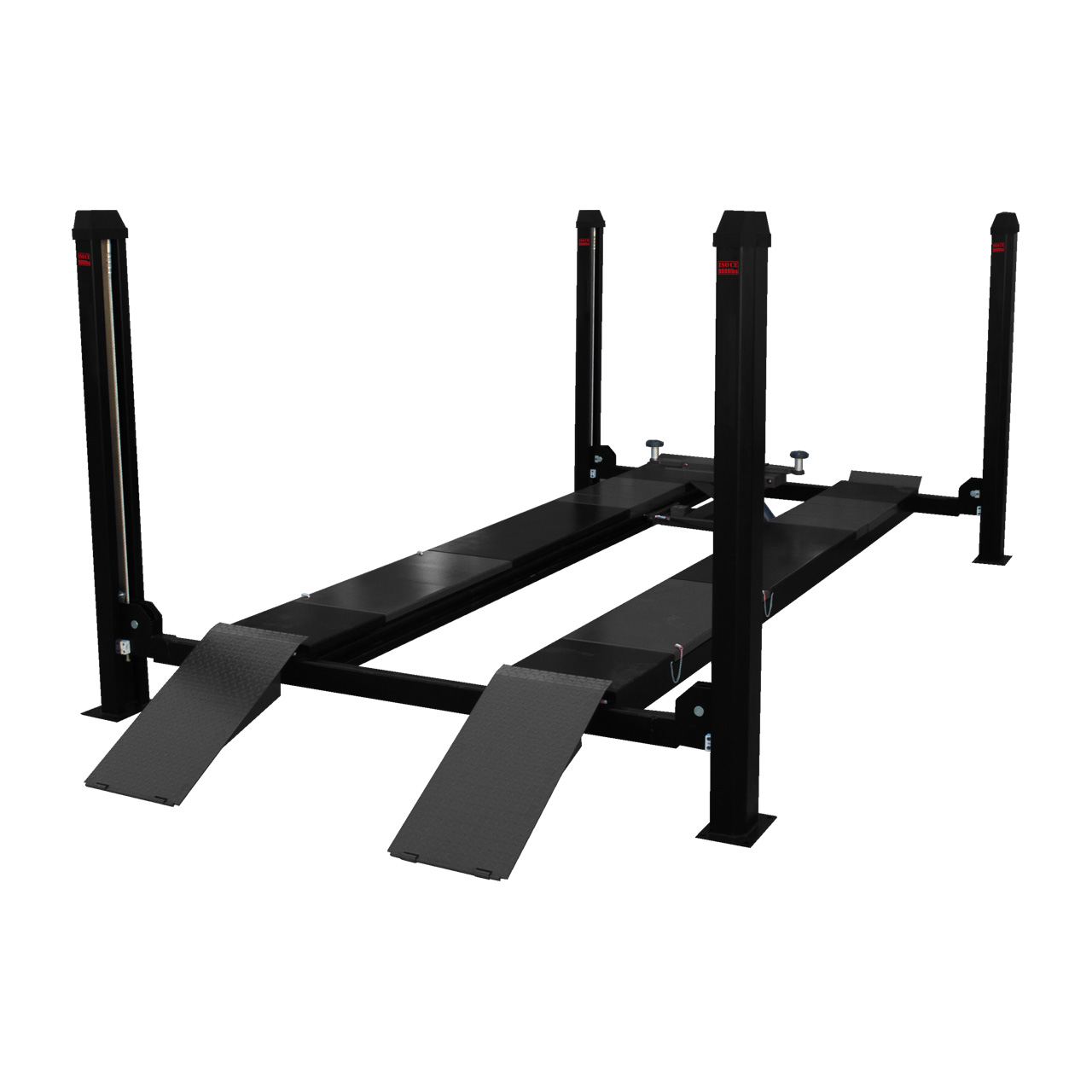

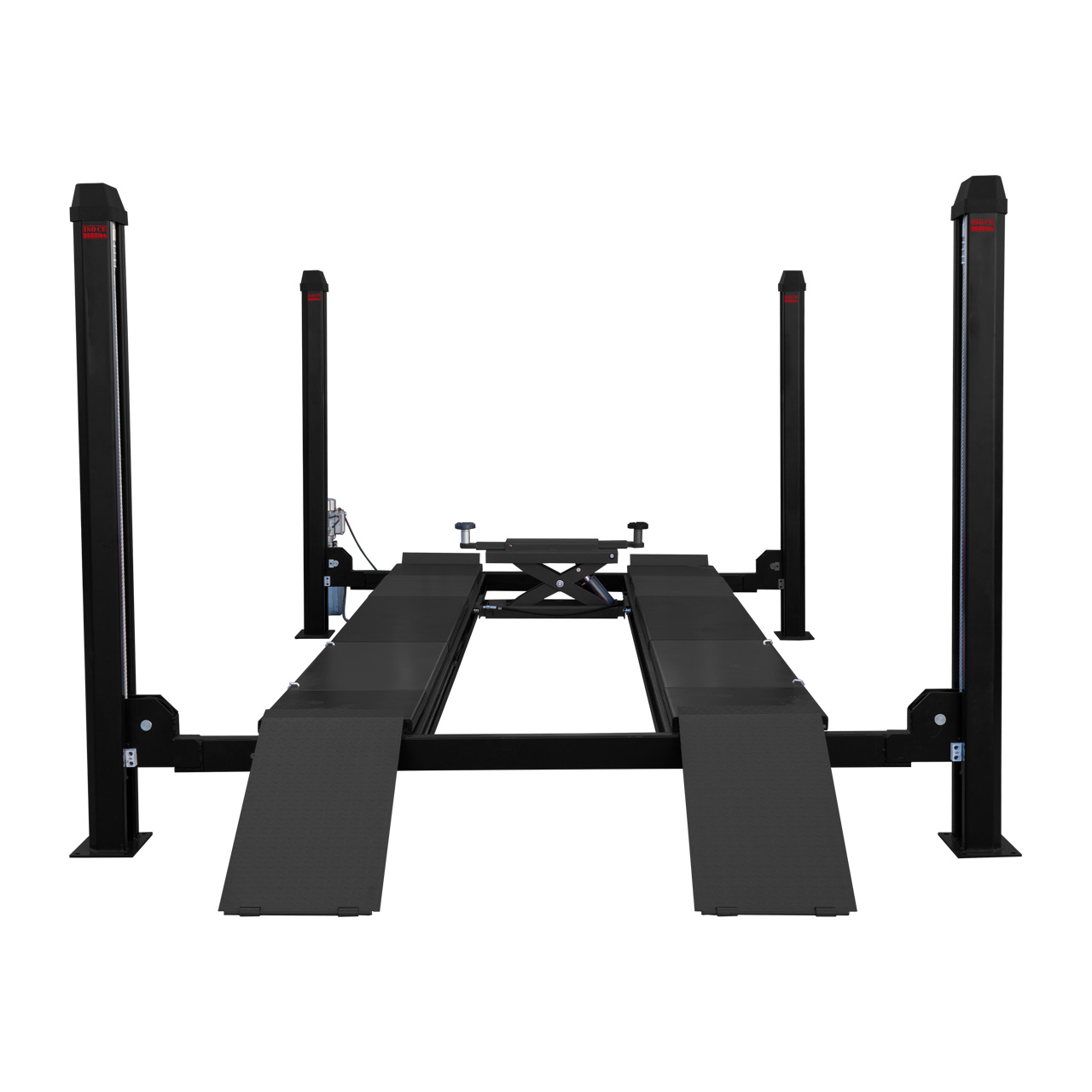

4-post lift with rolling jack supporting wheel alignment

The ANTOOL Open Front Alignment 4000kg capacity Lift doublesas both a vehicle maintenance lift and an advanced wheel align-ment system. Built tough and engineered for performance.Heavy-duty slip plates and turntables are integrated directly into therunways, allowing wheels to respond freely to adjustments forsmooth, accurate alignments. Longer approach ramps ensure ef-fortless loading and unloading for vehicles of all sizes.

Capacity: 4000/5000kg | Max Lift Height: 1700mm | Platform Width: 550mm

Description

4-post lift with rolling jack supporting wheel alignment

The ANTOOL Open Front Alignment 4000kg capacity Lift doublesas both a vehicle maintenance lift and an advanced wheel align-ment system. Built tough and engineered for performance.Heavy-duty slip plates and turntables are integrated directly into therunways, allowing wheels to respond freely to adjustments forsmooth, accurate alignments. Longer approach ramps ensure ef-fortless loading and unloading for vehicles of all sizes.

Capacity: 4000/5000kg | Max Lift Height: 1700mm | Platform Width: 550mm

Features

  • 1A Quality built with CE-Certificate
  • Lift capacity 4000 kg
  • 24 V limit switch
  • Hydraulic overflow valve
  • Roll off protection
  • Safety lock for entire lifting height
  • Cable break safety device
  • Sliding plates
  • Foot protection
  • Acoustic warning signal
  • High quality powder coating
  • Certified & tested at 150% of rated capacity

Specifications

Style Scissor Lift
Lifting capacity 4000kg
Max lifting height 1700mm
Jack lifting height 470mm
Min Height 260mm
Width platform 550mm
Length platform 4500mm
Lifting time about 45s
Motor power 2.2kw
 Motor voltage 220v 60hz 1ph
Working noise 65dB(A)
Package size 4700*650*900mm
package weight (approx.) 1200kg

Delivery contents

  • Lift incl. Power unit
  • Heavy duty anchor bolts
  • CE-Certificate

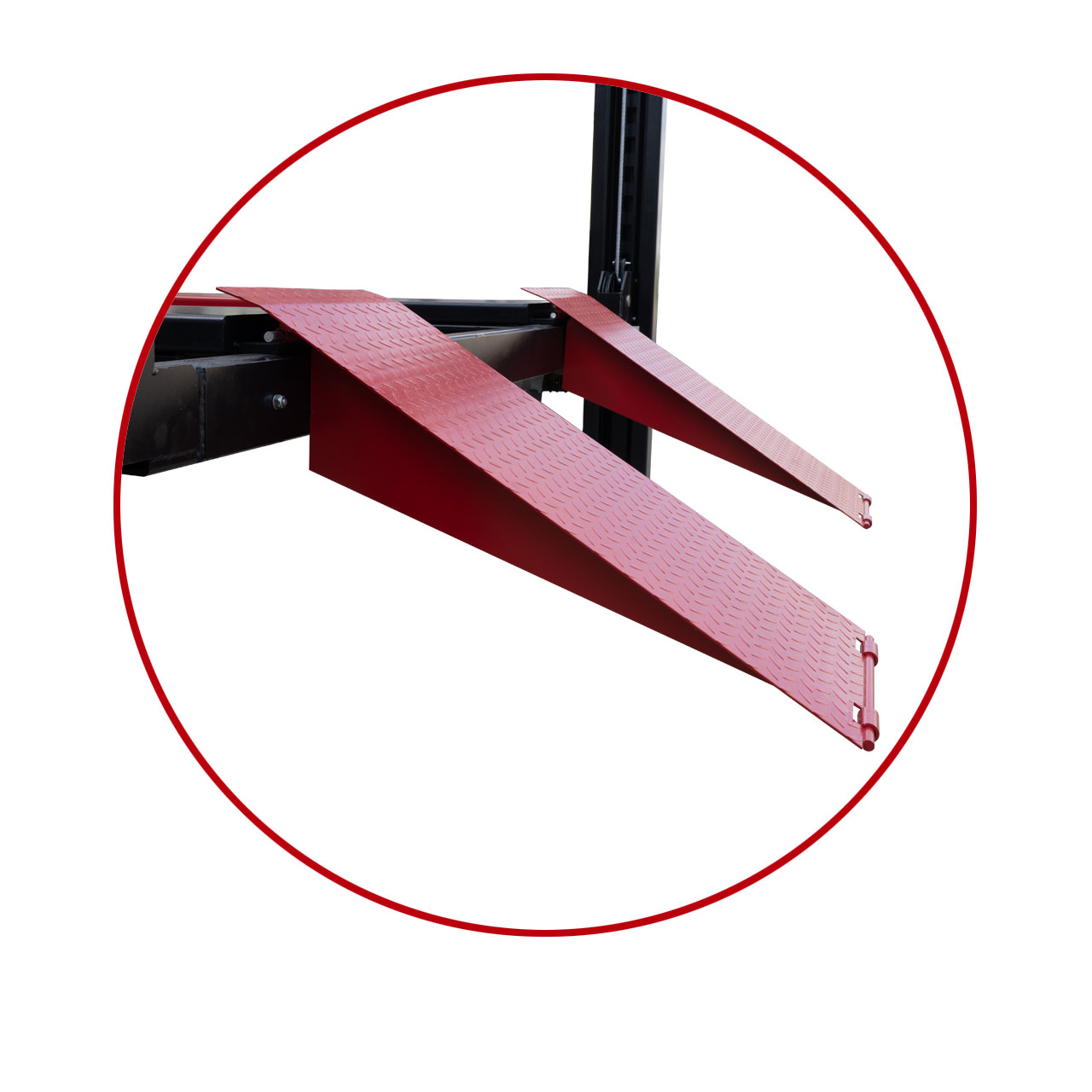

  • Optional: Turntables、Drive on ramp

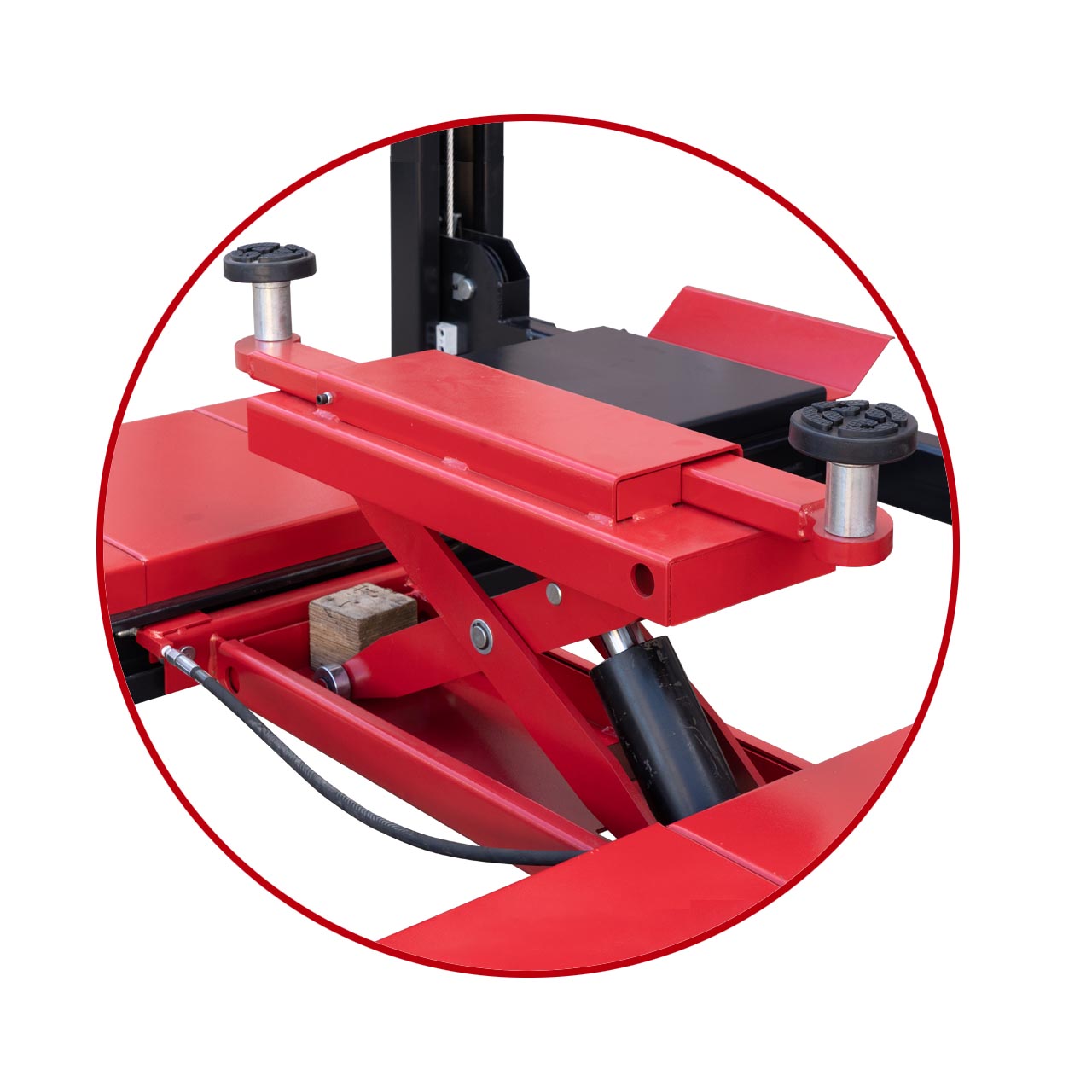

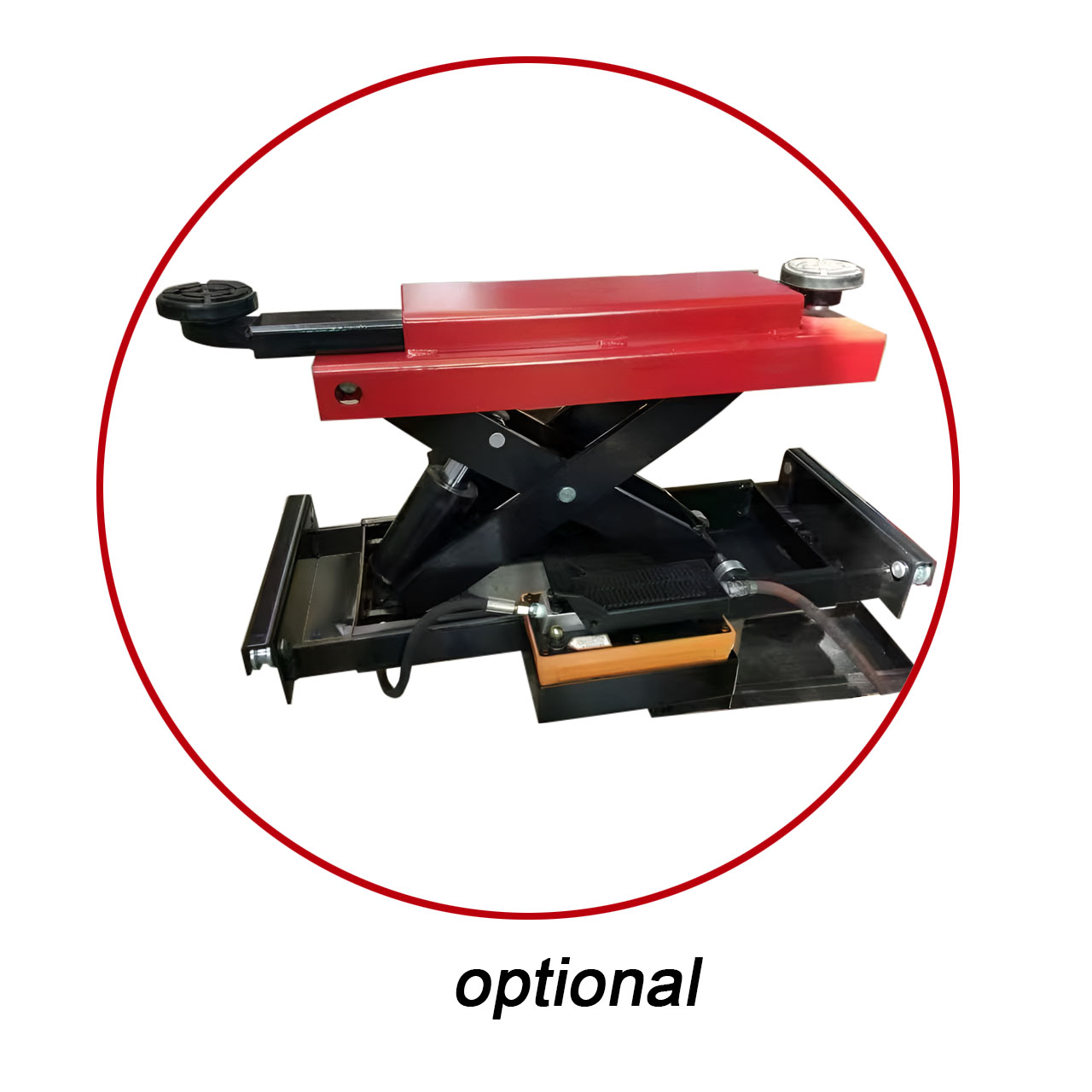

  • Optional: Rolling jack
  • Assembly video online | Product video online

Shipping Information

Accessories

Warranty

We aim to provide the best warranty in the industry, without confusing language. Our goal is for you to feel confident with a simple, reliable warranty.

Please read our warranty policies before ordering, and if anything is unclear, don’t hesitate to ask for clarification. Thank you!

The AnTool LIMITED WARRANTY covers defects in materials, workmanship, and warranted parts. AnTool promises to repair or replace defective parts during the warranty period. Limited warranty does not include labor costs.

Costs incurred for installation, repairs, maintenance and non-warranted parts are the customer’s responsibility.

Wheel Equipment
3 years on major structural components from the date of manufacture
1 years on electric hydraulic power units, pneumatic power units, hydraulic cylinders, cables, hoses, locks, pulleys, sheaves, and bushings
1 year on soft or wear parts (pads, slide blocks, rubber, nylon, neoprene, and optional accessories) from the invoice date
What Is Not Covered or Voids Limited Warranty
