Antool A-810

Rim-Lock Tire Changer / Semi-Automatic Side Swing Arm Assist Tire Machine

Reliability, durability, and performance — at a price that makes sense.
The Antool A-810 Rim-Lock Tire Changer comes fully equipped with every feature your shop needs to handle tough applications like run-flats and low-profile tires. Compact cabinet design makes it perfect for limited-space shops.

Warranty: 3 Years | Max Tire Diameter: 41″ | Max Wheel Width: 15″

Features

  • Antool -3 Year Warranty
  • Semi-automatic side swing arm
  • Steel bead breaker cylinder for improved durability

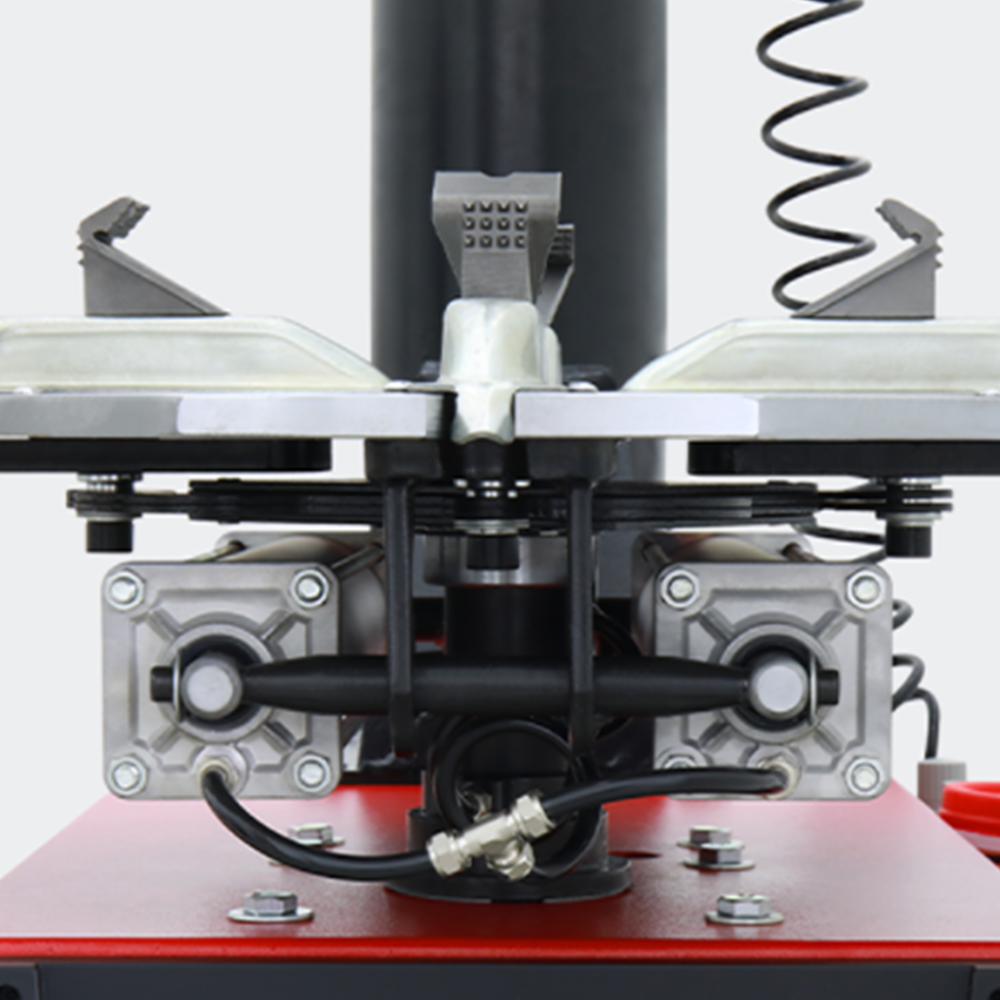

  • Heavy-duty large diameter clamping cylinder
  • Integrated seal ring and piston reduces resistance
  • Lightweight aluminum gearbox for long life

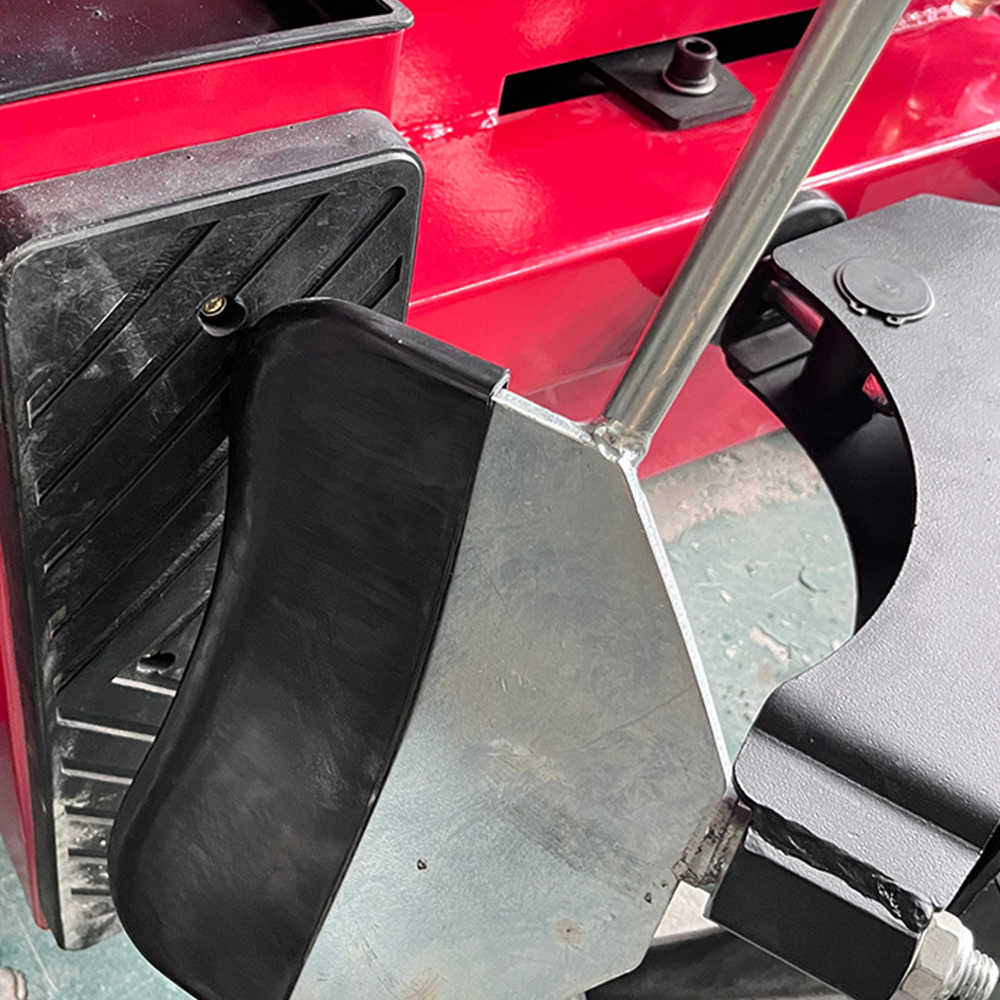

  • Pneumatic bead breaker
  • High-torque motor and drive
  • Optional motorcycle adaptor

Specifications

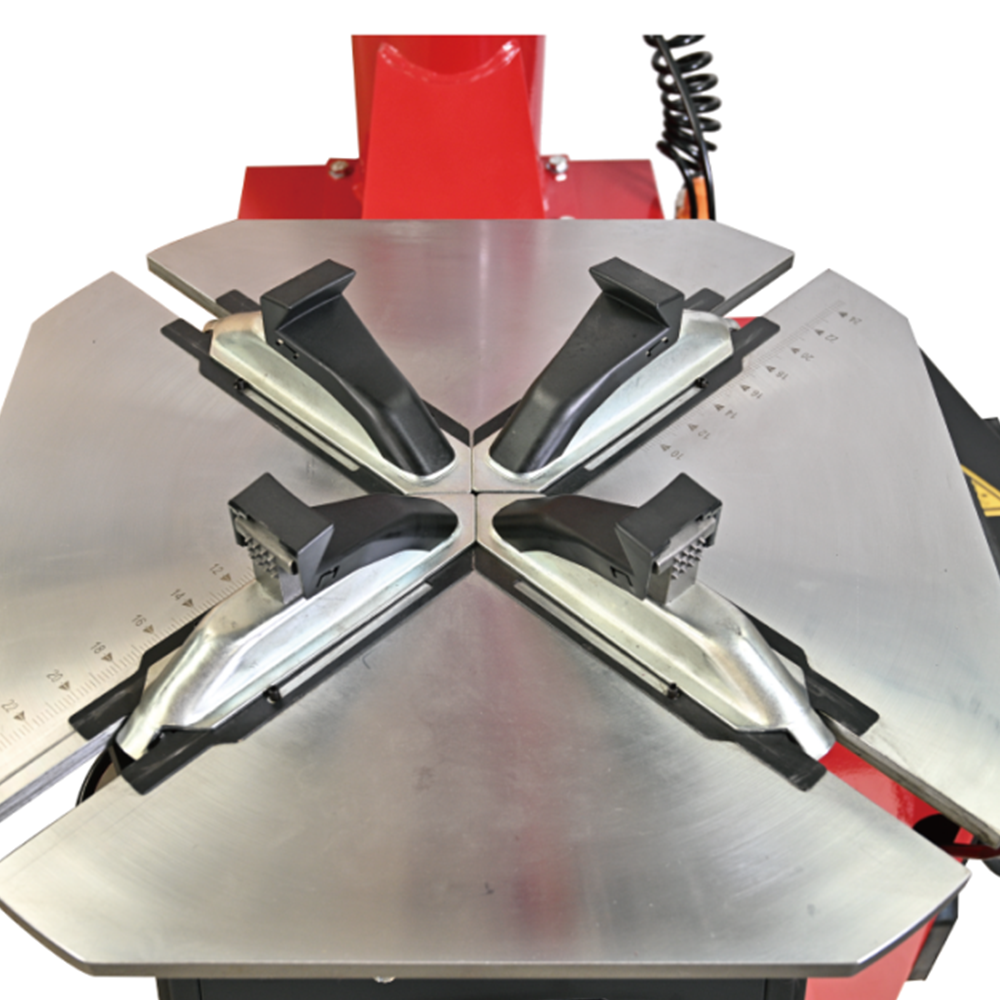

  • Rim clamping range (External): 10″ – 18″
  • Rim clamping range (Internal): 12″ – 20″
  • Rim clamping range (with motorcycle adaptor): up to 18″
  • Max. wheel diameter: 41″
  • Max. wheel width: 3″ – 15″
  • Pressing Force(10bar): 5510 IBS.(2500KG)
  • Operating pressure: 8BAR-10BAR(116-145PSI)
  • Maximum Charge Pressure: 3.5BAR(50PSI)
  • Motor: 110/220/380V, 1/3PH
  • Motor Power: 1.1KW/0.75KW/1.5KW
  • Noise: < 70 db

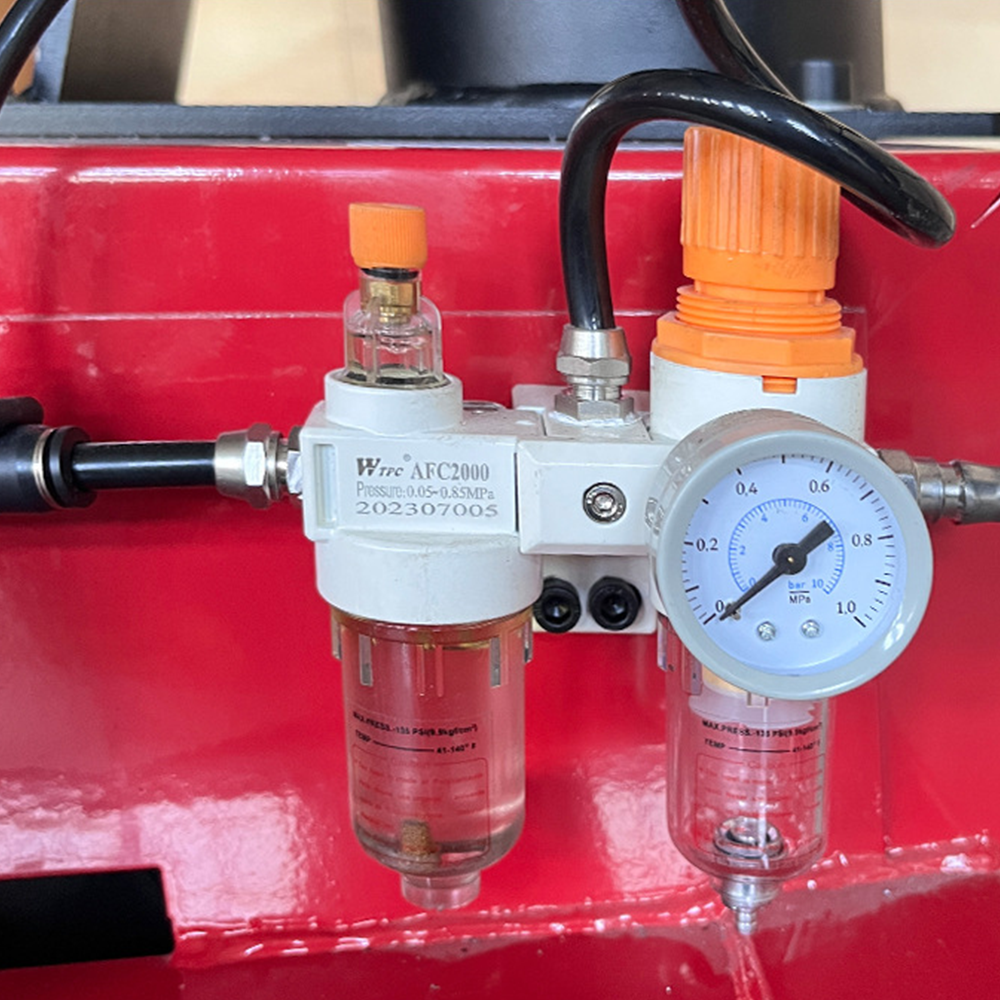

  • Air regulator and oil lubricator

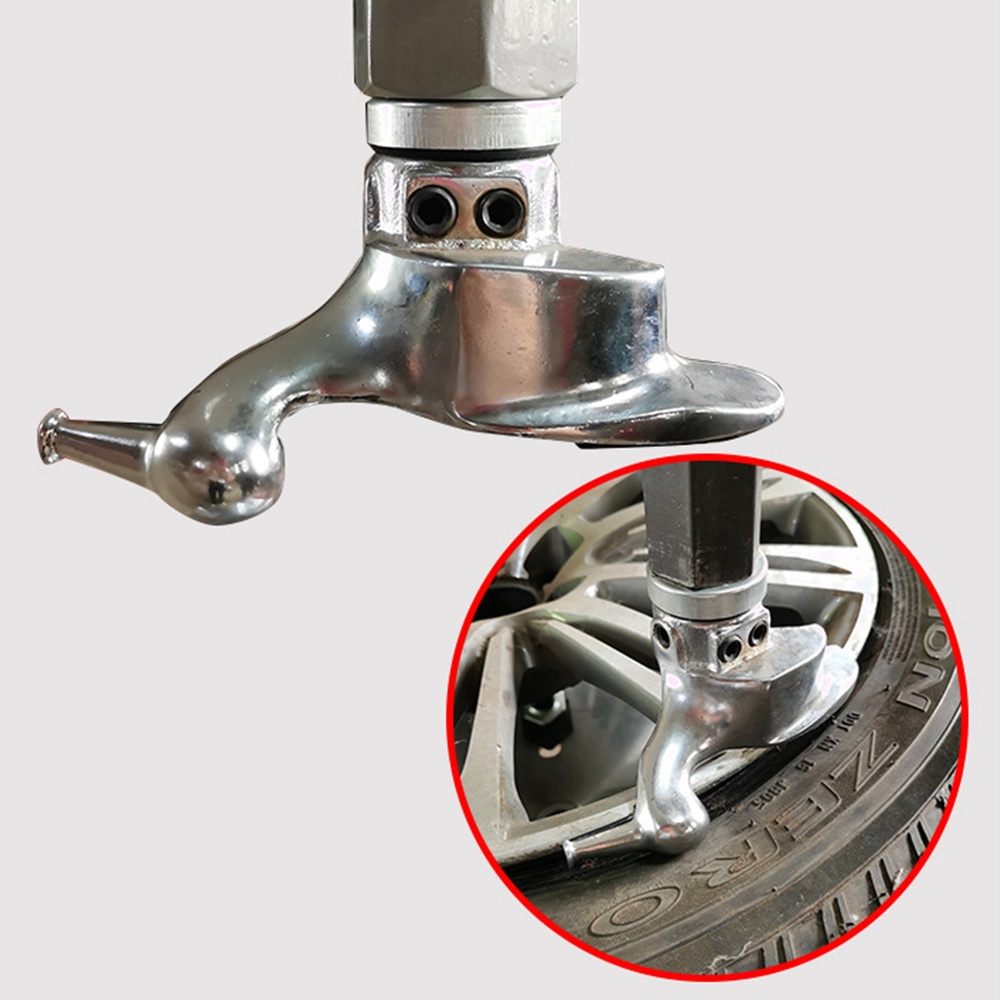

  • Plastic protective mount/demount head
  • CE certified
  • Optional clamping adapters: Sold separately
  • Optional pneumatic powered assist arm: sold separately

Shipping Information

Accessories

Warranty

We aim to provide the best warranty in the industry, without confusing language. Our goal is for you to feel confident with a simple, reliable warranty.

Please read our warranty policies before ordering, and if anything is unclear, don’t hesitate to ask for clarification. Thank you!

The AnTool LIMITED WARRANTY covers defects in materials, workmanship, and warranted parts. AnTool promises to repair or replace defective parts during the warranty period. Limited warranty does not include labor costs.

Costs incurred for installation, repairs, maintenance and non-warranted parts are the customer’s responsibility.

Wheel Equipment
3 years on major structural components from the date of manufacture
1 years on electric hydraulic power units, pneumatic power units, hydraulic cylinders, cables, hoses, locks, pulleys, sheaves, and bushings
1 year on soft or wear parts (pads, slide blocks, rubber, nylon, neoprene, and optional accessories) from the invoice date
What Is Not Covered or Voids Limited Warranty
